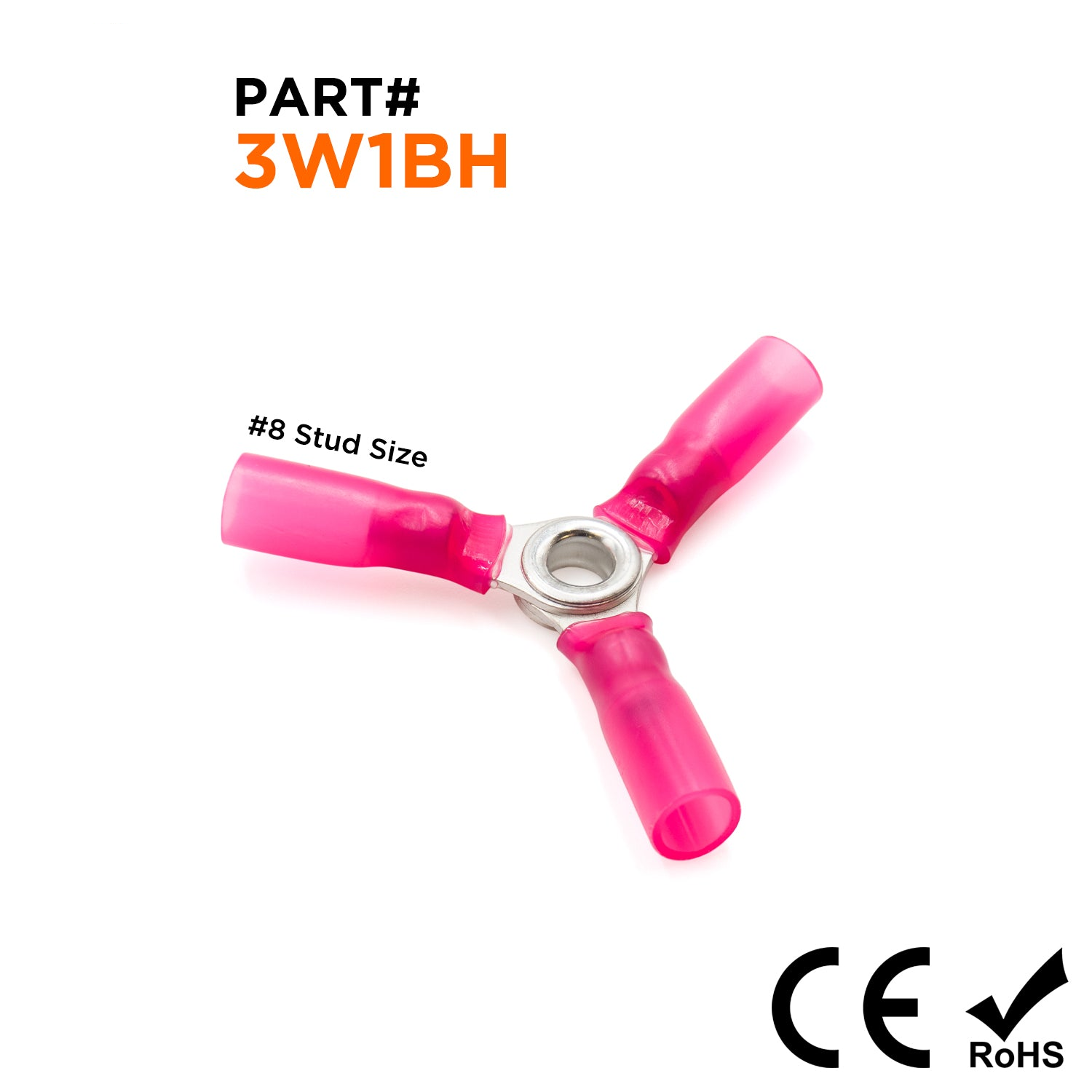

Procurement reference model: 3W1BH. Wire Range: 22 to 16 AWG; Color: Red; E: 0.728" (18.5mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 10 · source pack reference |
| Wire Range | 22 to 16 AWG |
| Color | Red |
| E | 0.728" (18.5mm) |
| F | 0.315" (8.0mm) |
| D1 | 0.067" (1.7mm) |
| D2 | 0.169" (4.3mm) |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Heat Shrink Nylon |
| Stud Size | #8 Stud |
| Shrink Temperature | 150°C |
| Voltage Rating | 600 Volts |
| CE Certified | Yes |
| RoHS Compliant | Yes |

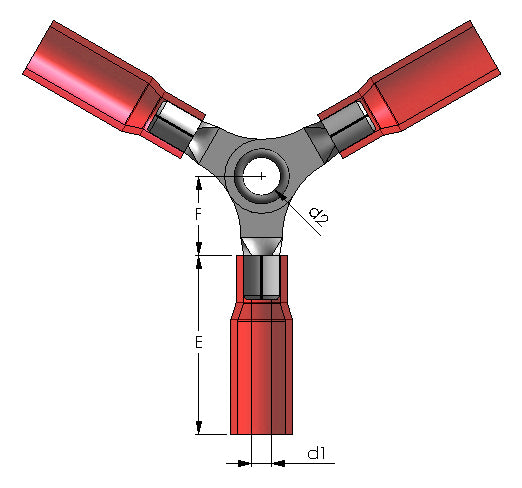

Drawings and product details
