Technical reference

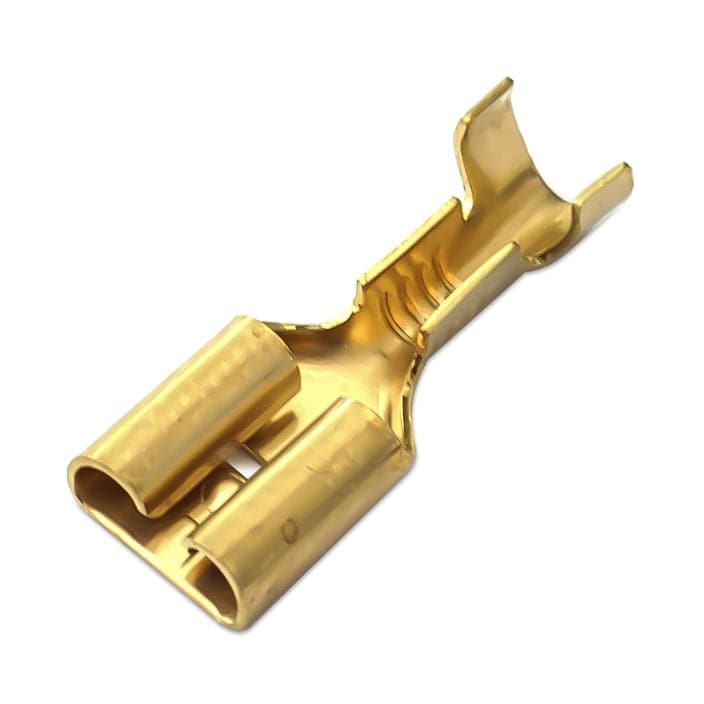

Procurement reference model: 608LR. Wire Size: 22-18 AWG; L: 19mm (0.75"); F: 7.4mm (0.29"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|

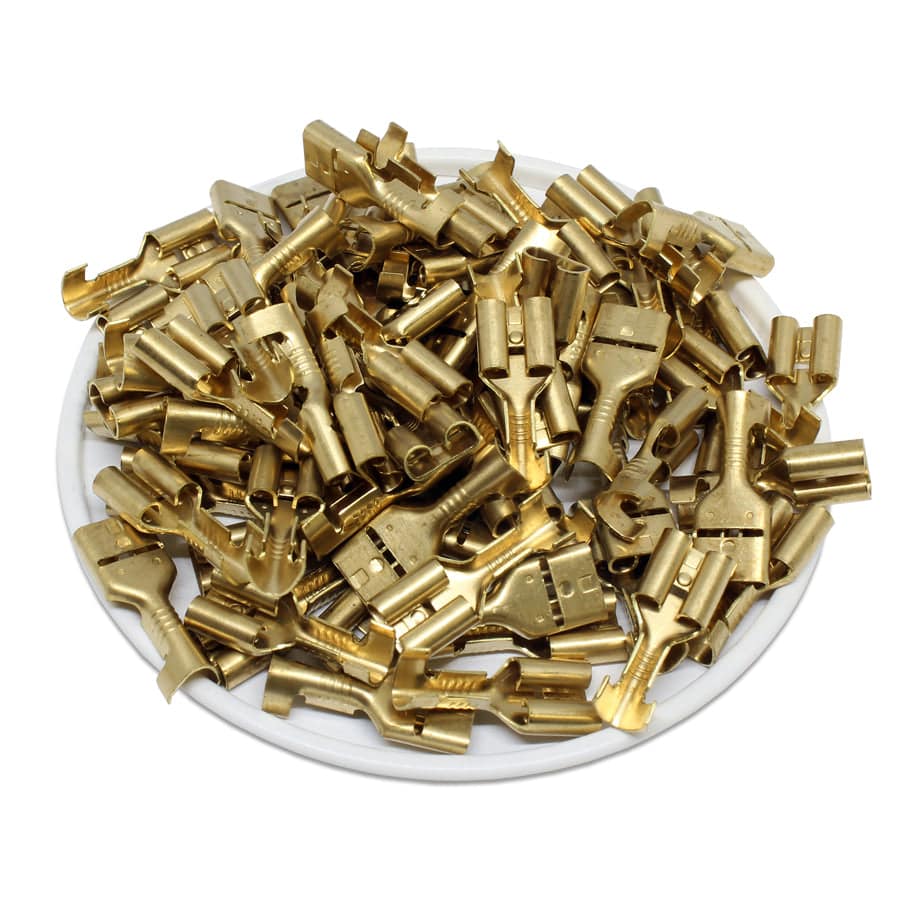

| Reference pack size | 100 · source pack reference |
| Wire Size | 22-18 AWG |
| L | 19mm (0.75") |
| F | 7.4mm (0.29") |
| W | 6.5mm (0.26") |
| D | 5.4mm (0.21") |
| D1 | 2.9mm (0.11") |
| T | 3.2mm (0.13") |
| Nema Tab | 0.032 x 0.250" (0.8 x 6.35mm) |
| Material | Brass - Untinned |
| Surface Treatment | Standard Chemical Treatment |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
