Technical reference

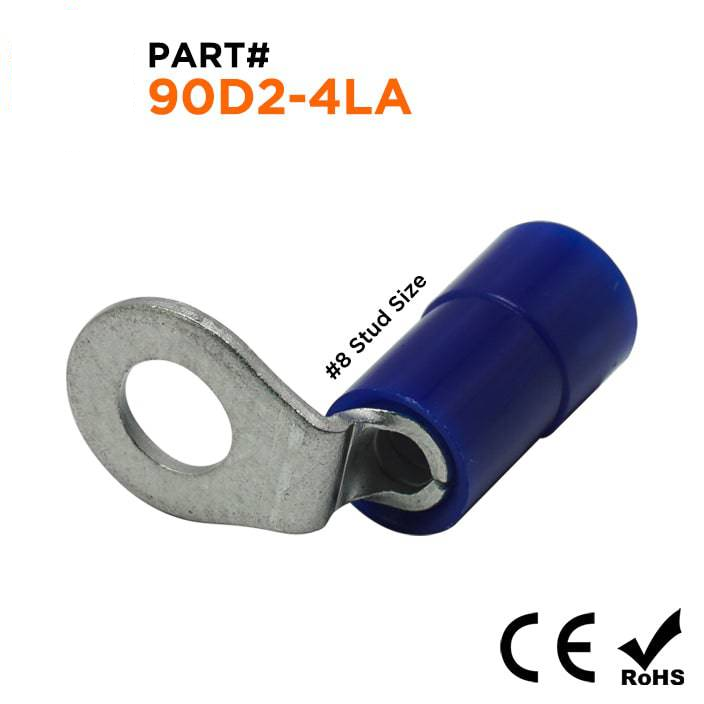

Procurement reference model: 90D2-4LA. Wire Size: 16-14 AWG; Stud Size: #8 Stud; Color: Blue. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| Stud Size | #8 Stud |
| Color | Blue |
| L | 14.5mm (0.570") |
| B | 8.5mm (0.334") |
| E | 11.0mm (0.433") |
| D | 4.5mm (0.177") |
| D1 | 2.3mm (0.090") |
| D2 | 4.3mm (0.169") |
| Flammability Rating | UL 94 V-2 |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Nylon |
| Max Electrical Rating | 600 Volts (105°C) |
| Max Electrical Current | 27 AMP |
| UL Recognized | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
