Technical reference

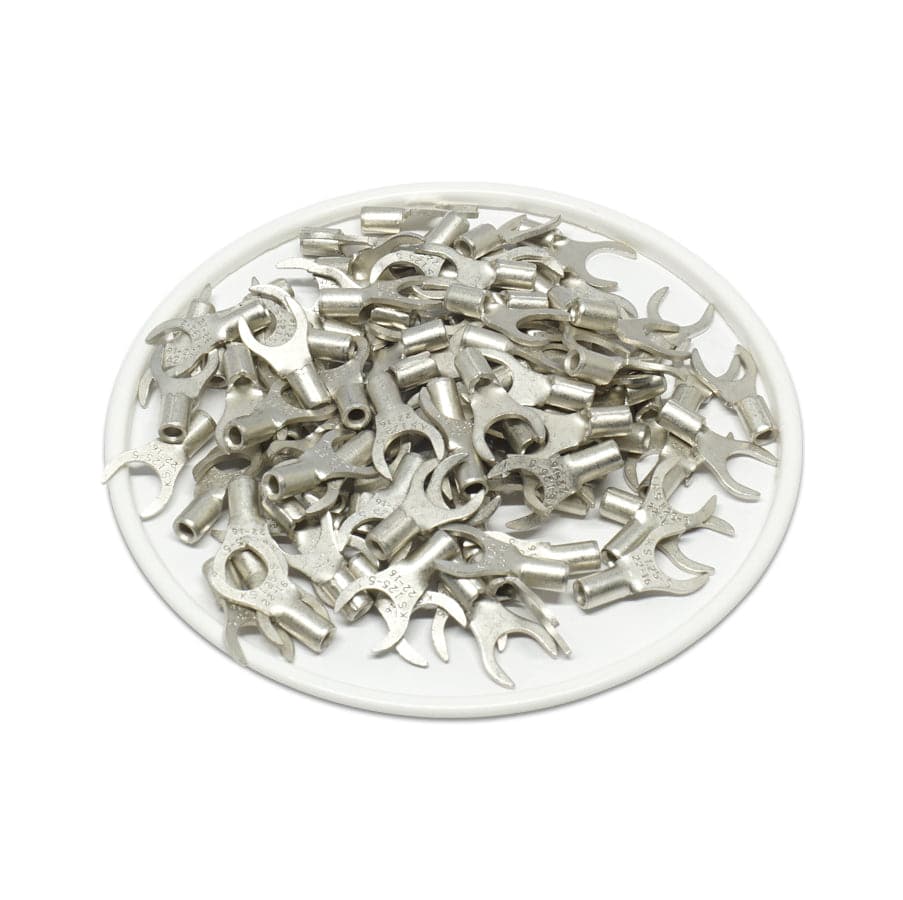

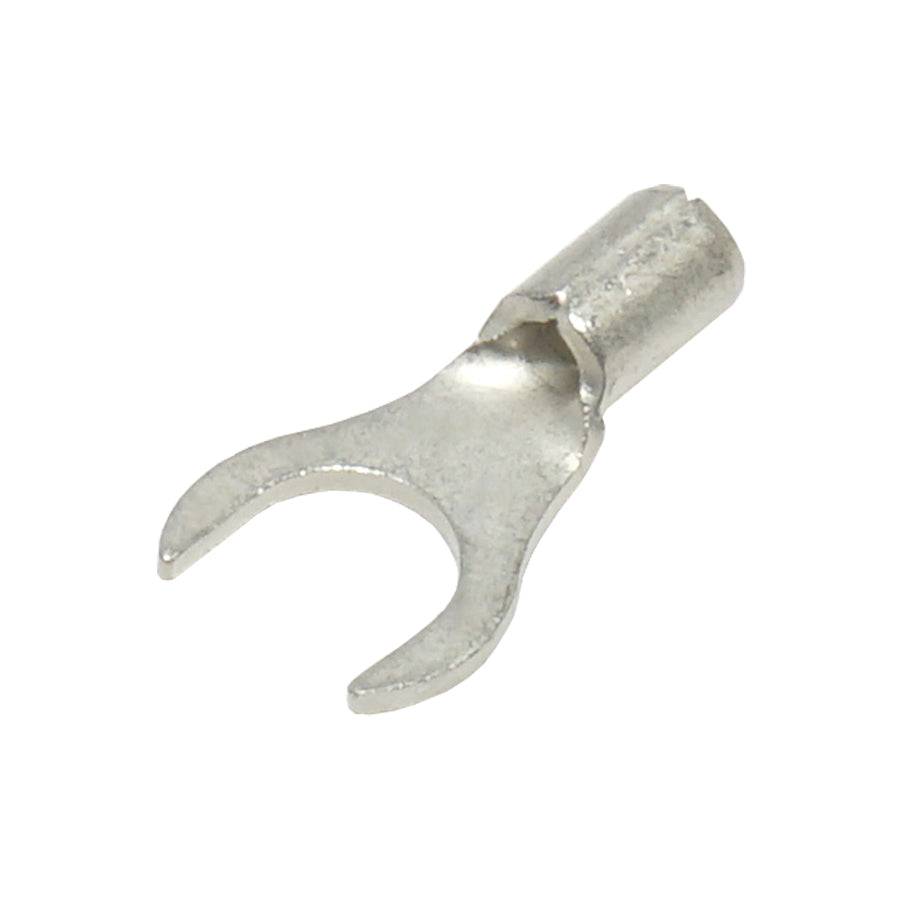

Procurement reference model: ANB1-5. Wire Size: 22-16 AWG; Stud Size: #10 Stud; D2: 5.3mm (0.21"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Stud Size | #10 Stud |
| D2 | 5.3mm (0.21") |
| W | 8.0mm (0.32") |
| F | 7.0mm (0.28") |
| L | 14.4mm (0.57") |
| E | 4.8mm (0.19") |
| D | 3.4mm (0.13") |
| D1 | 1.7mm (0.07") |
| T | 0.75mm (0.03") |
| Material | Tin Plated Copper |
| Seam | Brazed |
| Electrical Rating | 105°C - 600 Volts |
| Electrical Current | 18 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
