Technical reference

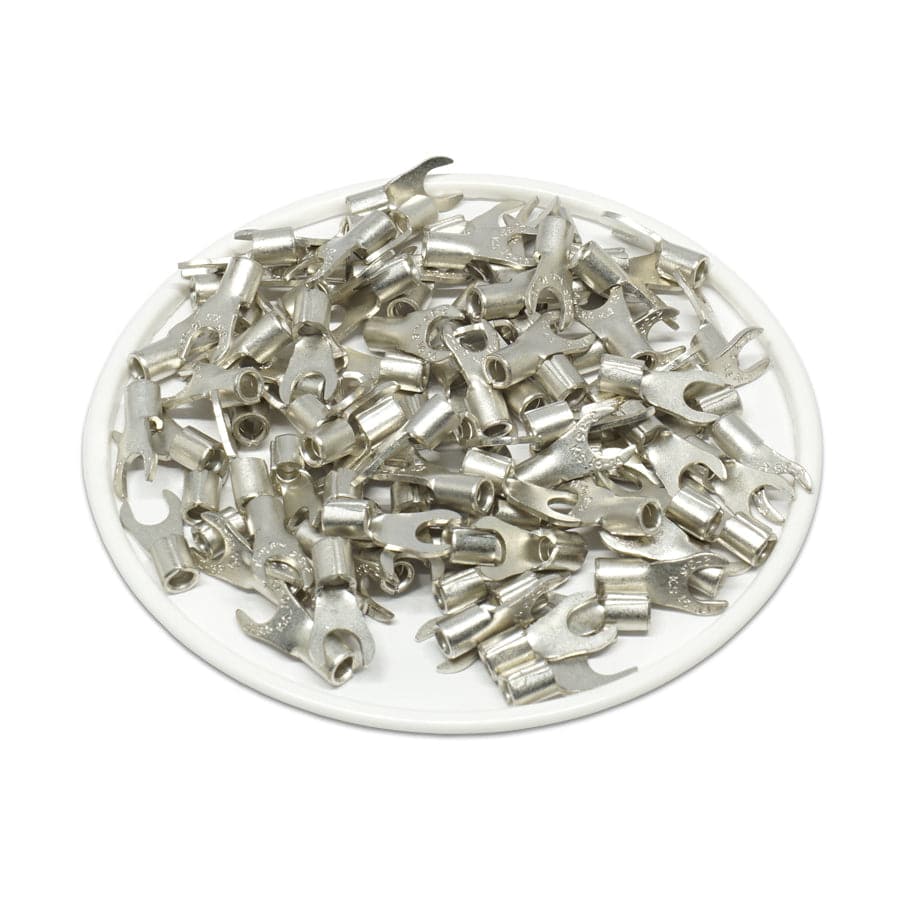

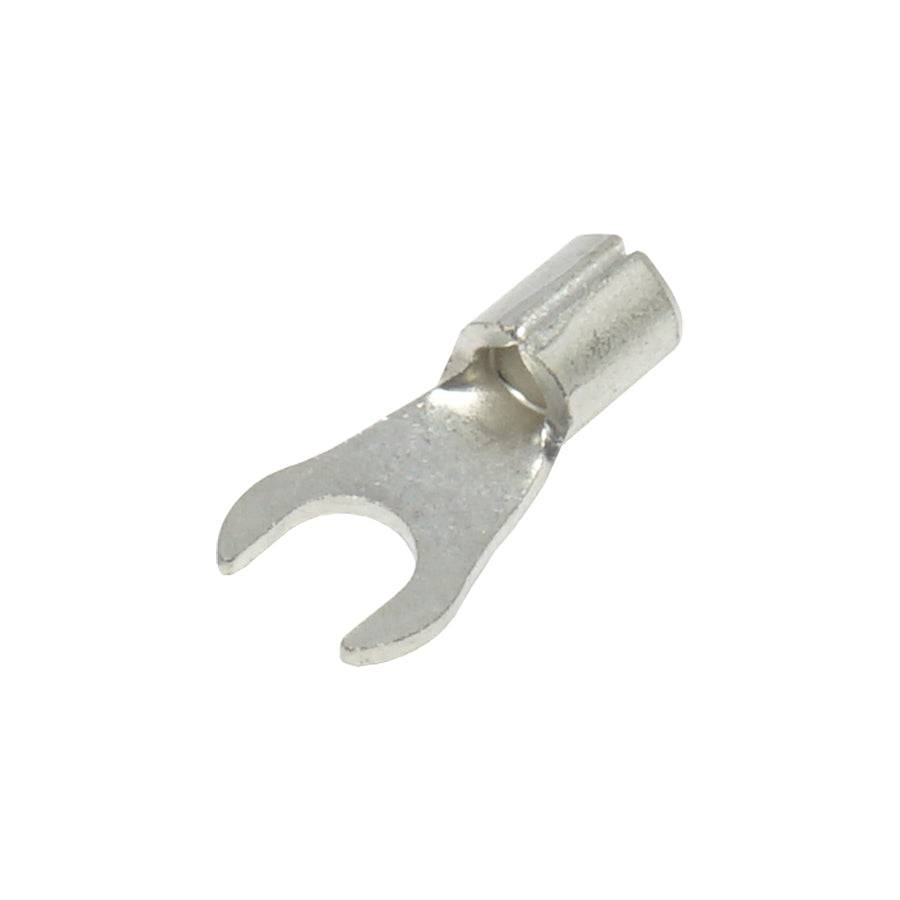

Procurement reference model: ANB2-37. Wire Size: 16-14 AWG; Stud Size: #6 Stud; D2: 3.7mm (0.15"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| Stud Size | #6 Stud |
| D2 | 3.7mm (0.15") |
| W | 6.6mm (0.26") |
| F | 6.3mm (0.25") |
| L | 13.5mm (0.53") |
| E | 4.8mm (0.19") |
| D | 4.1mm (0.16") |
| D1 | 2.3mm (0.09") |
| T | 0.8mm (0.03") |
| Material | Tin Plated Copper |
| Seam | Brazed |
| Electrical Rating | 105°C - 600 Volts |
| Electrical Current | 30 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
