Technical reference

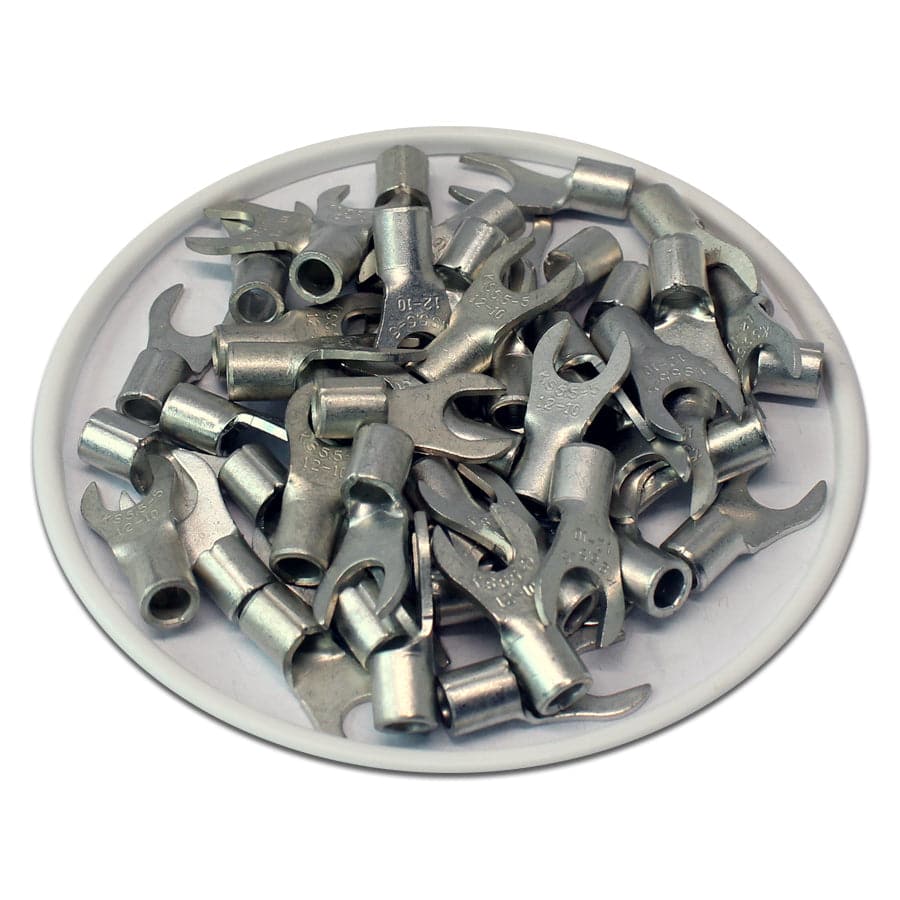

Procurement reference model: ANB5-5. Wire Size: 12-10 AWG; Stud Size: #10 Stud; D2: 5.3mm (0.21"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| Wire Size | 12-10 AWG |
| Stud Size | #10 Stud |
| D2 | 5.3mm (0.21") |
| W | 9.5mm (0.37") |
| F | 9.1mm (0.36") |
| L | 18.6mm (0.73") |
| E | 6.0mm (0.24") |
| D | 5.6mm (0.22") |
| D1 | 3.4mm (0.13") |
| T | 1.0mm (0.04") |
| Material | Tin Plated Copper |
| Seam | Brazed |
| Electrical Rating | 105°C - 600 Volts |
| Electrical Current | 50 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
