Technical reference

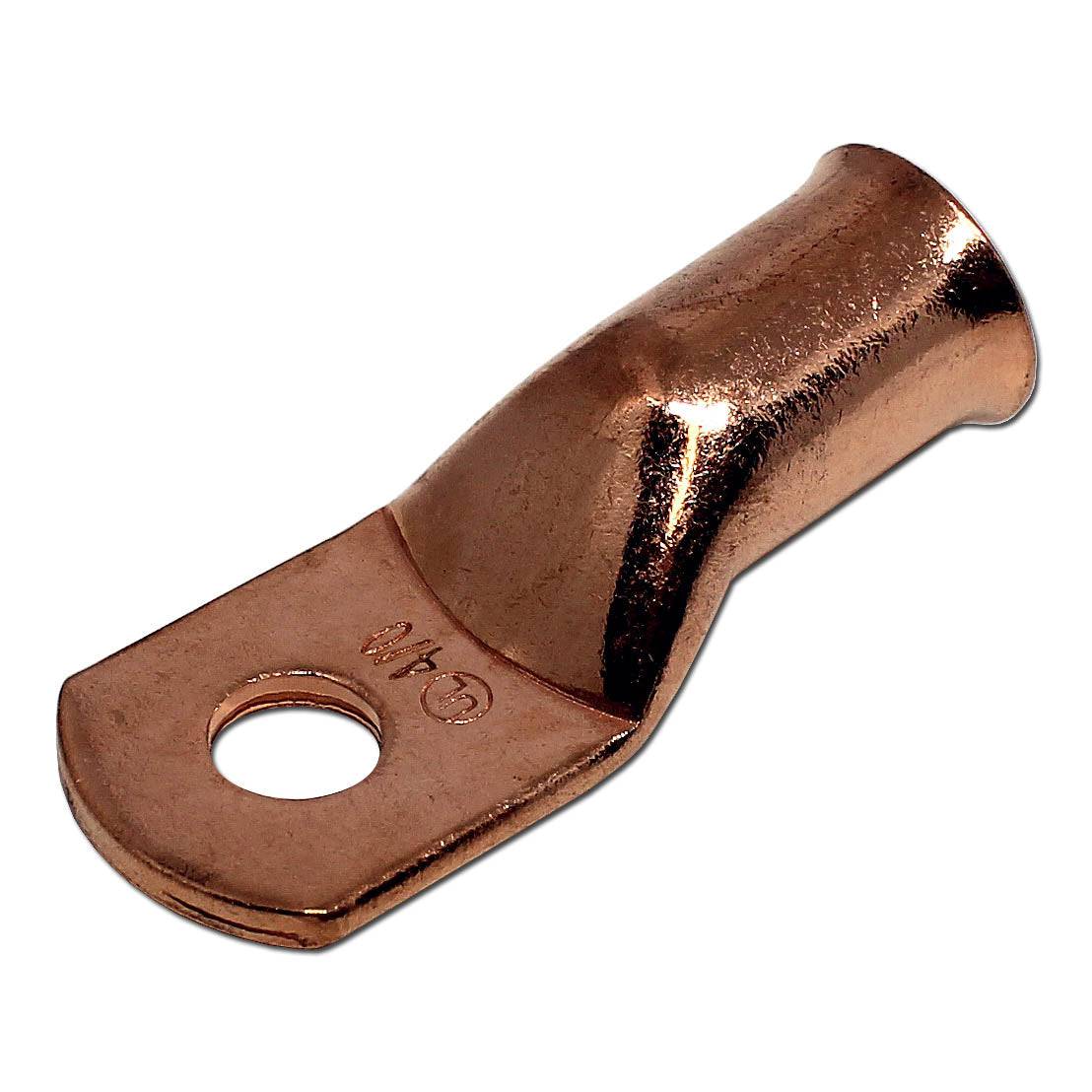

Procurement reference model: BCL4014. Wire Size: 4/0 AWG; L: 61.2mm (2.41"); L1: 13.7mm (0.54"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 4/0 AWG |
| L | 61.2mm (2.41") |
| L1 | 13.7mm (0.54") |
| D | 25.8mm (1.02") |
| D1 | 17.4mm (0.69") |
| D2 | 14.2mm (0.56") |
| B | 19.1mm (0.75") |
| E | 6.6mm (0.26") |
| F | 2.5mm (0.10") |
| Terminal Material | Copper |
| Stud Size | 1/4" |
| Temperature Rating | 90 °C |
| Voltage Rating | 35KV |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |

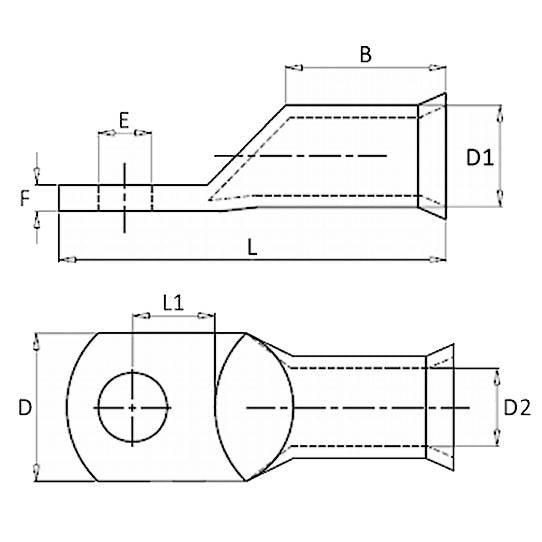

Drawings and product details
