Technical reference

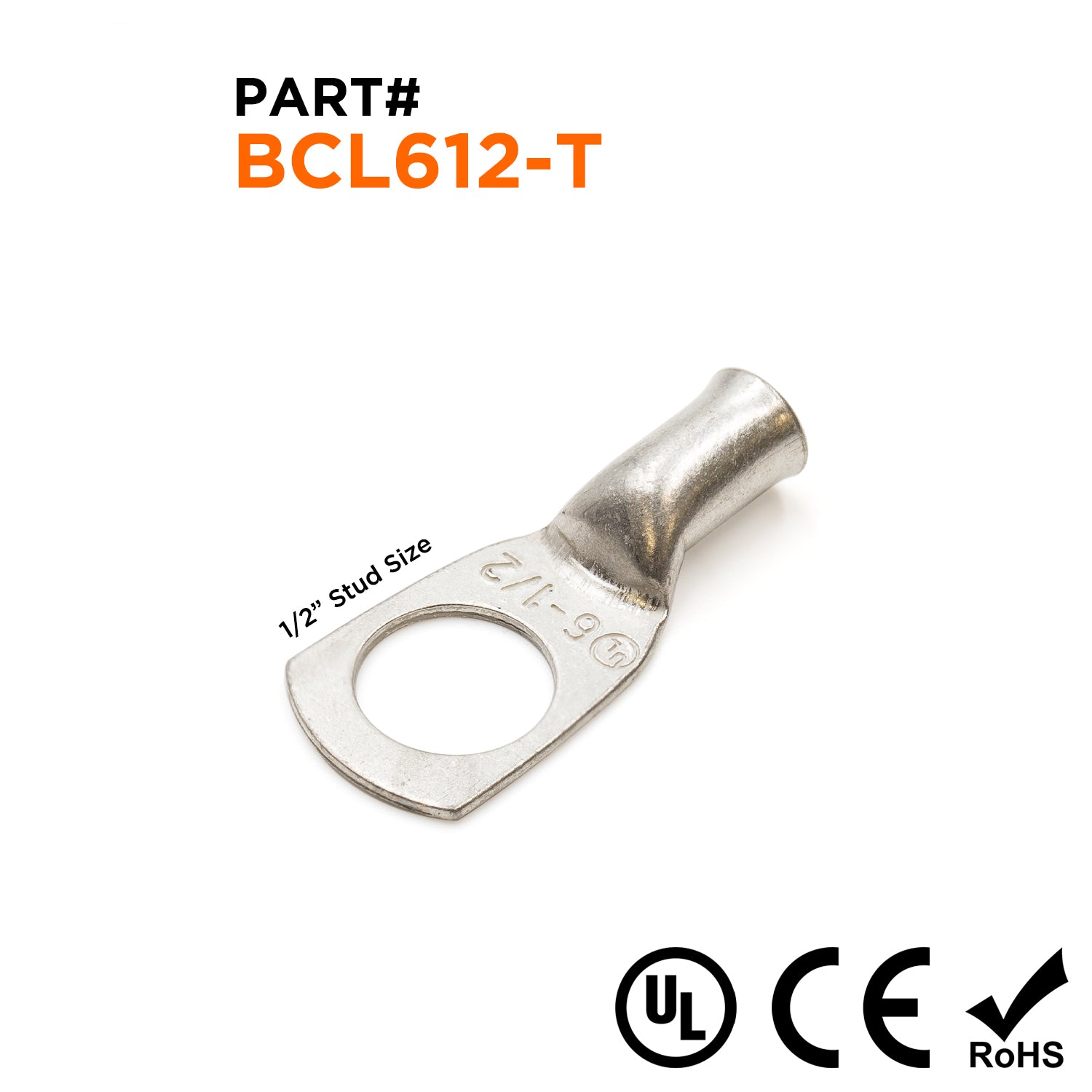

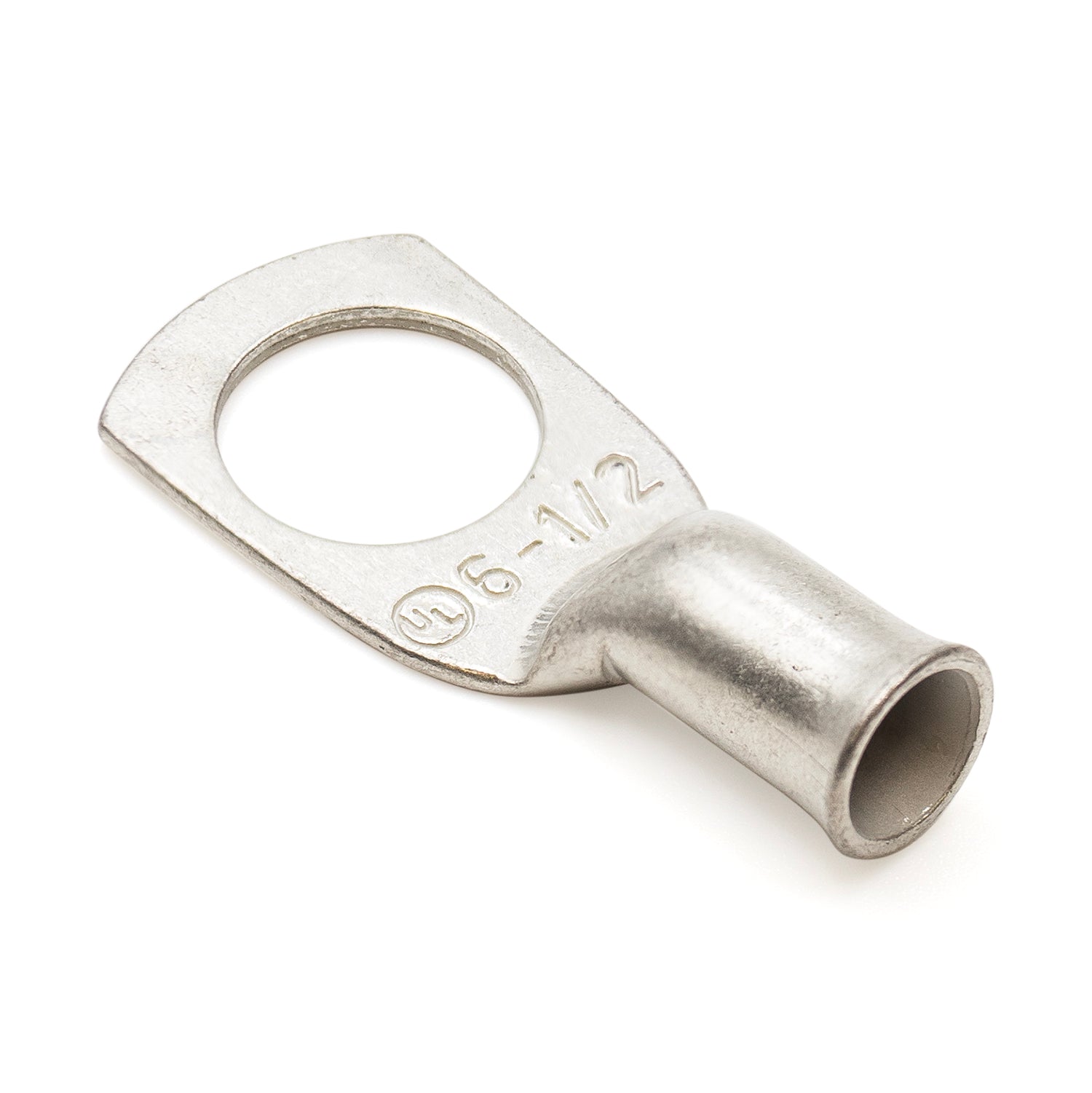

Procurement reference model: BCL612-T. Wire Size: 6 AWG; L: 40.1mm (1.57"); L1: 9.7mm (0.38"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 6 AWG |
| L | 40.1mm (1.57") |
| L1 | 9.7mm (0.38") |
| D | 17.4mm (0.68") |
| D1 | 8.0mm (0.31") |
| D2 | 6.0mm (0.23") |
| B | 12.3mm (0.48") |
| E | 13mm (0.51") |
| F | 1.2mm (0.05") |
| Terminal Material | Copper |
| Stud Size | 1/2" |
| Temperature Rating | 90°C |
| Voltage Rating | 35KV |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
