Technical reference

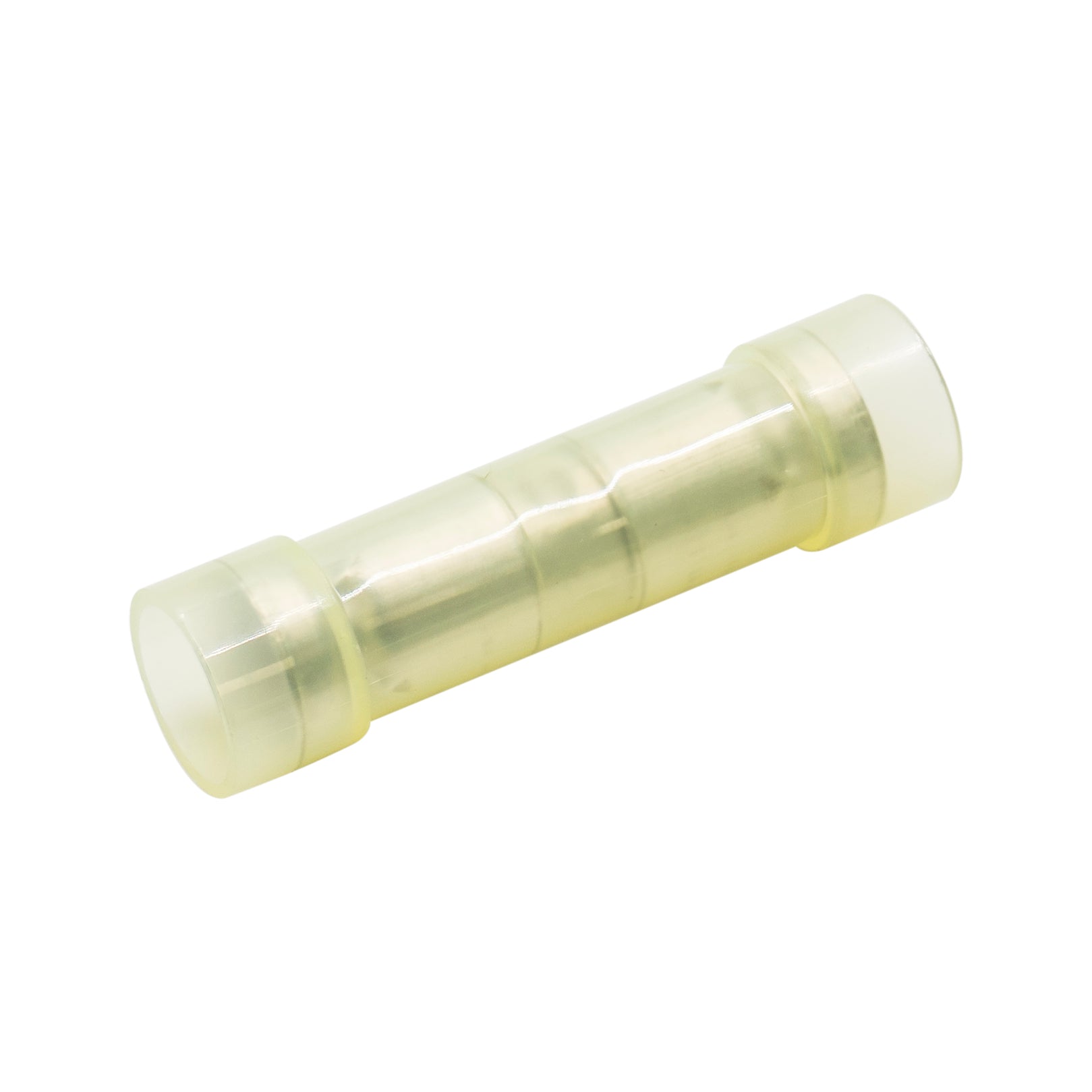

Procurement reference model: BNYDF5. Wire Size: 12-10 AWG; Color: Yellow; L: 31.3mm (1.233"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| Wire Size | 12-10 AWG |
| Color | Yellow |
| L | 31.3mm (1.233") |
| D | 7.0mm (0.276") |
| D1 | 3.6mm (0.142") |
| Barrel | Butted Seam |
| Crimp Type | Double |
| Configuration | Flared |
| Material | Tin Plated Copper |
| Insulation | Nylon |
| Max Electrical Rating | 105°C - 600 Volts |
| Max Electrical Current | 50 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |

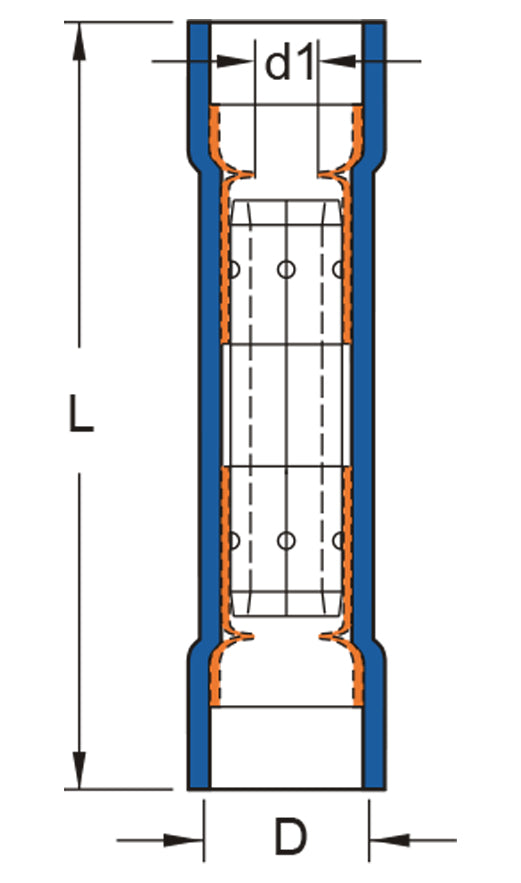

Drawings and product details
