Technical reference

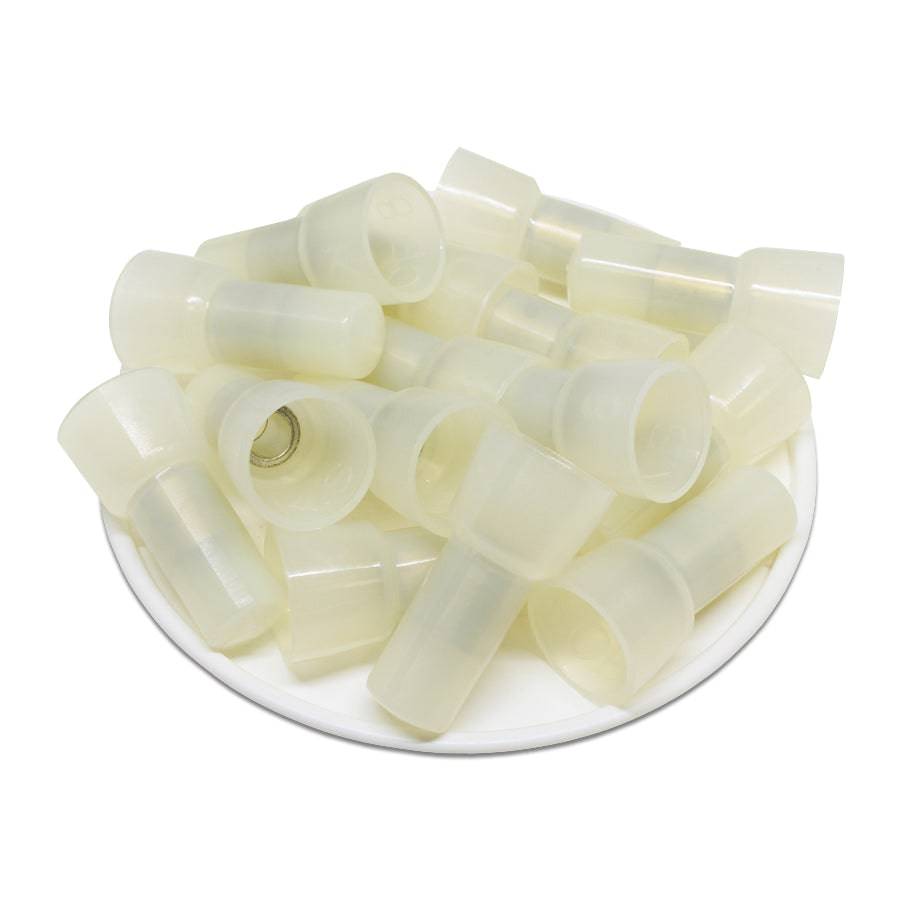

Procurement reference model: CE5UL. Wire Range: 12-10 AWG; L: 1.0" (25.4mm); F: 0.57" (14.6mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 12-10 AWG |
| L | 1.0" (25.4mm) |
| F | 0.57" (14.6mm) |
| D | 0.39" (10.0mm) |
| W | 0.29" (7.5mm) |
| T | 0.02" (0.07mm) |
| E | 0.29" (7.3mm) |
| C | 0.16" (4.0mm) |
| Terminal Material | Copper |
| Insulation Material | UL Approved 94U-V Nylon 6/6 |
| Color | Natural |
| Temperature Rating | 105 o C - 600 Volts |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
