Technical reference

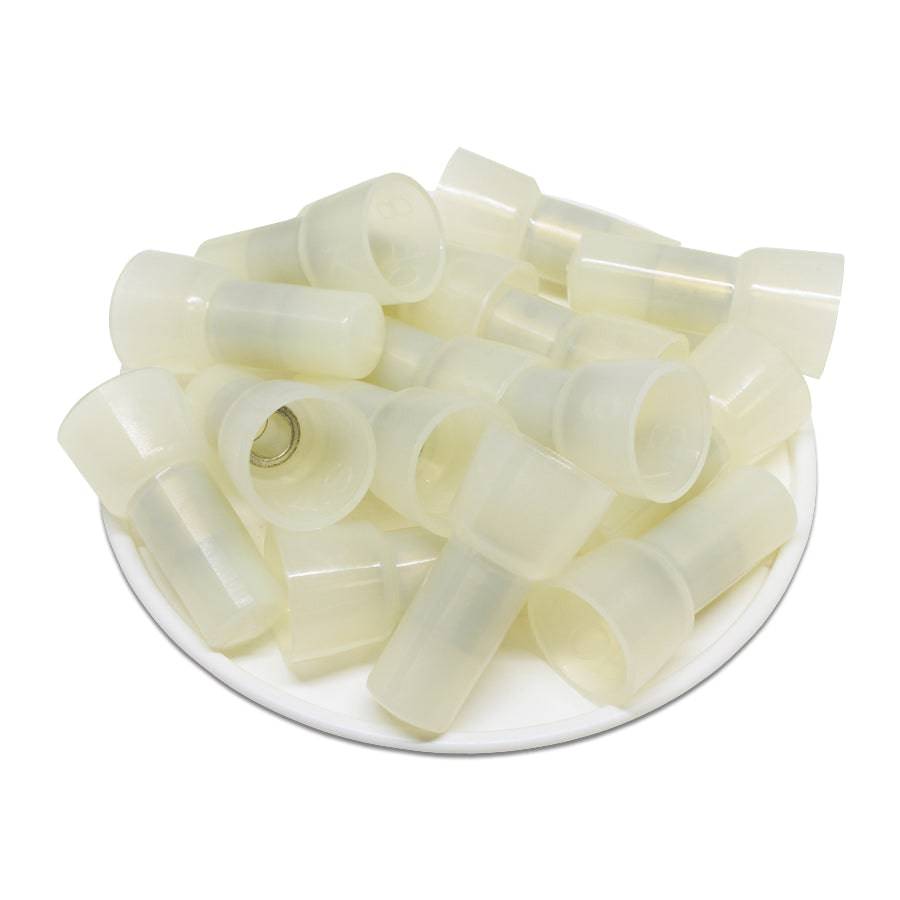

Procurement reference model: CE8UL. Wire Range: 8 AWG; L: 1.2" (30.0mm); F: 0.71" (18.0mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Range | 8 AWG |
| L | 1.2" (30.0mm) |
| F | 0.71" (18.0mm) |
| D | 0.47" (12.0mm) |
| W | 0.37" (9.4mm) |
| T | 0.04" (1.25mm) |
| E | 0.34" (8.5mm) |
| C | 0.17" (4.4mm) |
| Terminal Material | Copper |
| Insulation Material | UL Approved 94U-V Nylon 6/6 |
| Color | Natural |
| Temperature Rating | 105 o C - 600 Volts |
| UL Recognized | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |

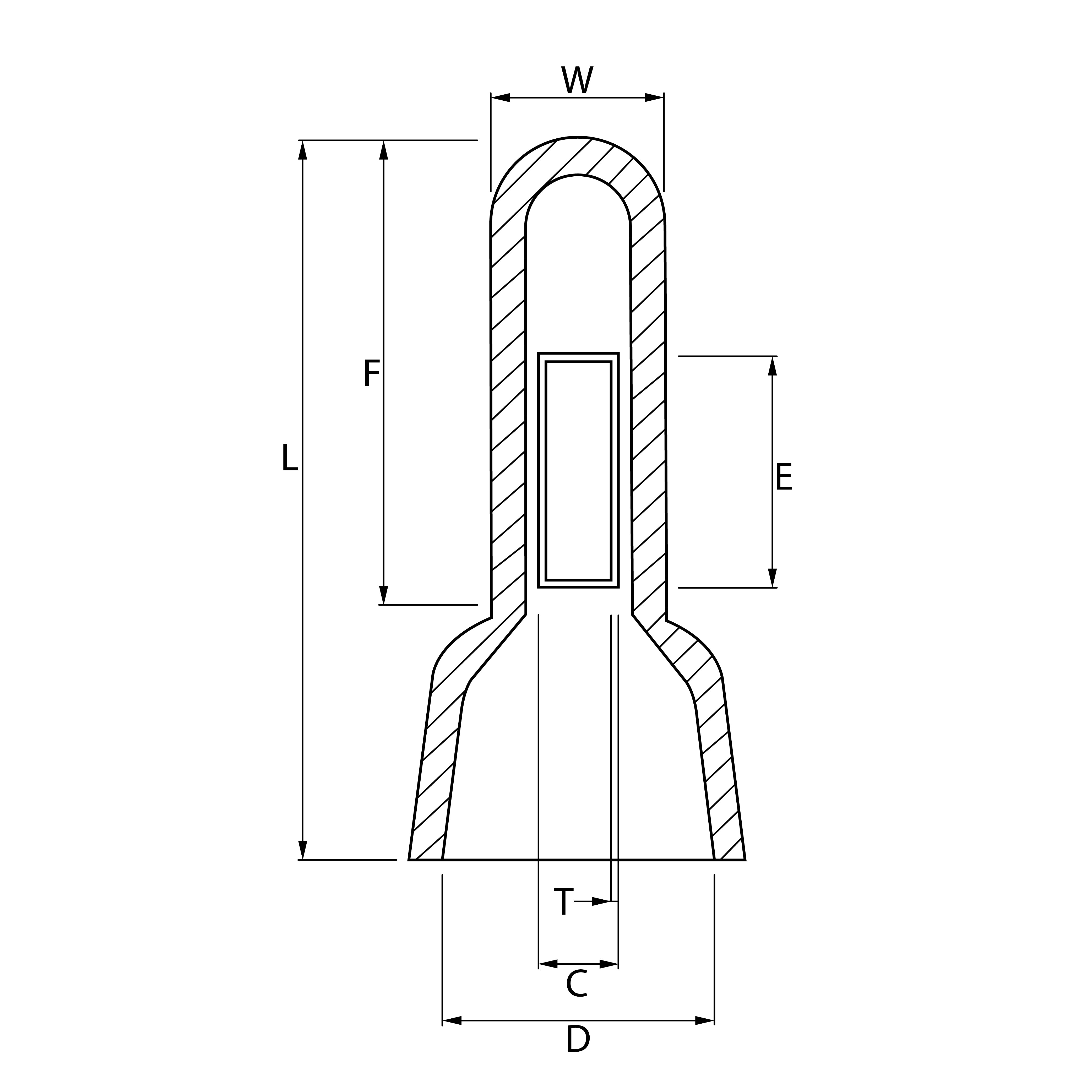

Drawings and product details
