Technical reference

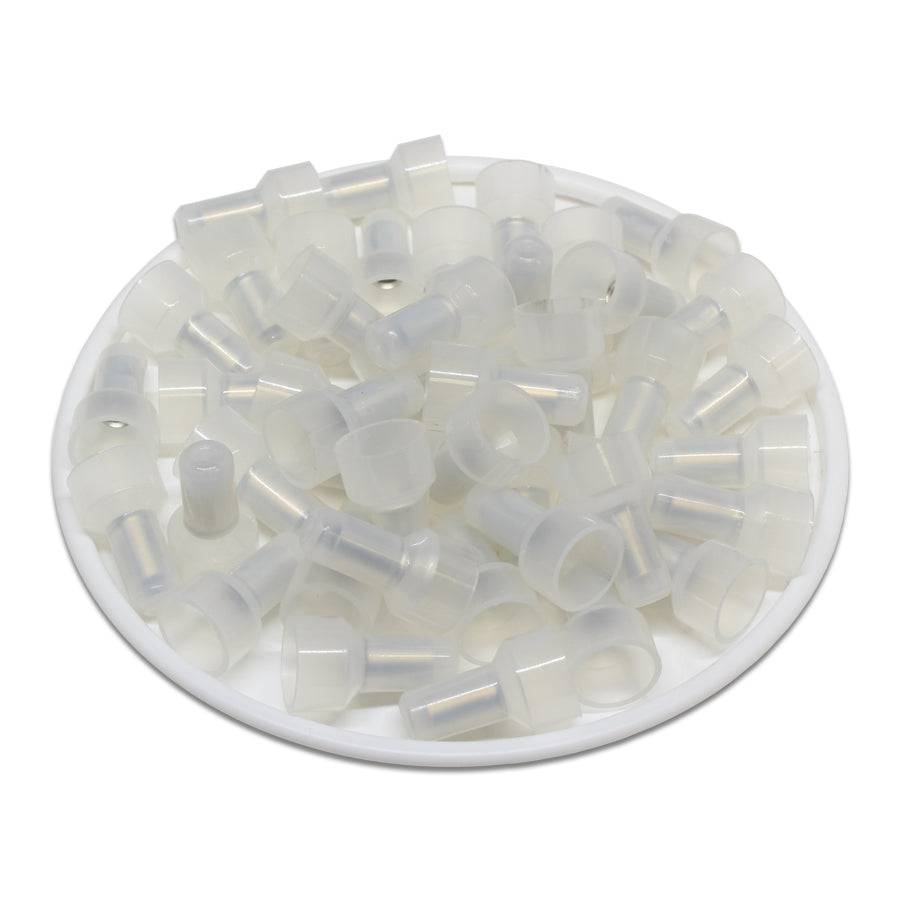

Procurement reference model: CEF2216. Wire Range: 22-16 AWG; L: 0.60" (15.3mm); F: 0.342" (8.7mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Range | 22-16 AWG |
| L | 0.60" (15.3mm) |
| F | 0.342" (8.7mm) |
| D | 0.30" (7.5mm) |
| W | 0.22" (5.0mm) |
| T | 0.01" (0.25mm) |
| E | 0.28" (7.0mm) |
| C | 0.10" (2.6mm) |
| Terminal Material | Steel |
| Insulation Material | UL Approved 94U-V Nylon 6/6 |
| Color | Natural |
| Temperature Rating | 105 o C - 600 Volts |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
