Technical reference

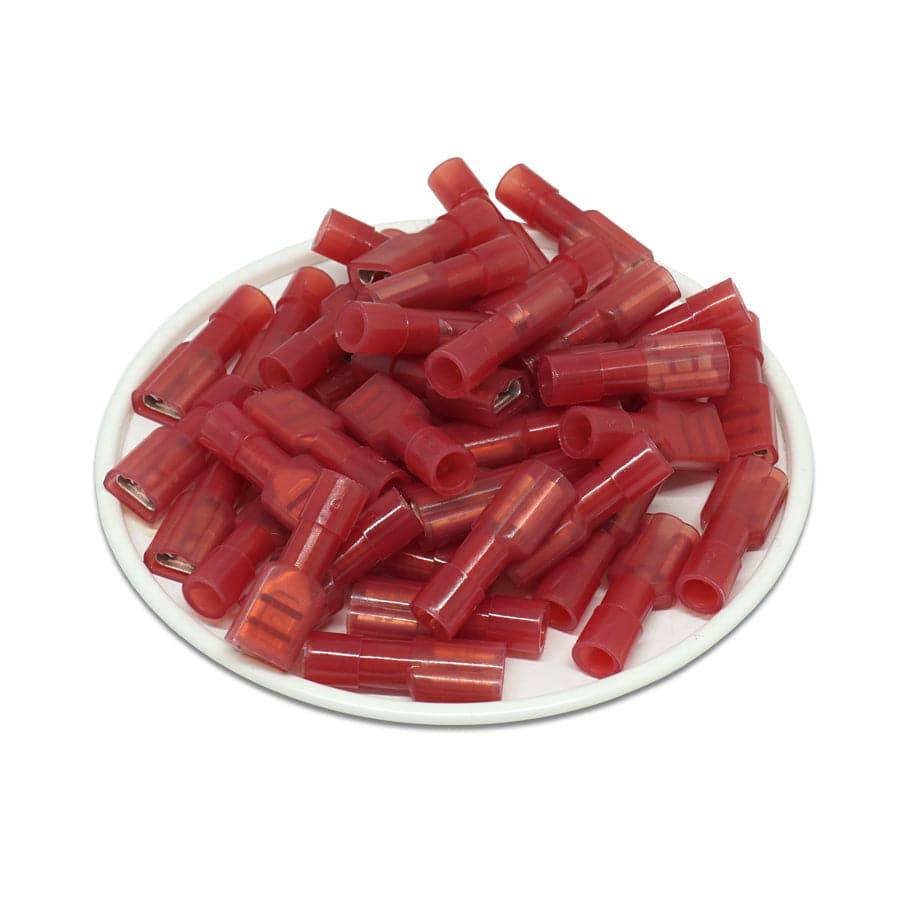

Procurement reference model: FDFNY1-187(8)A. Wire Range: 22-16 AWG; Color: Red; W: 8.0mm (0.31"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 22-16 AWG |
| Color | Red |
| W | 8.0mm (0.31") |
| F | 6.4mm (0.25") |
| L | 20.2mm (0.79") |
| B | 11.0mm (0.43") |
| D | 4.0mm (0.16") |
| T | 0.35mm (0.01") |
| Nema Tab | 2.2mm X 5.0mm (0.08" X 0.19") |
| Terminal Material | Copper |
| Insulation Material | Nylon |
| Max Electrical Rating | 105 o - 600 Volts |
| AMP Rating | 10 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |

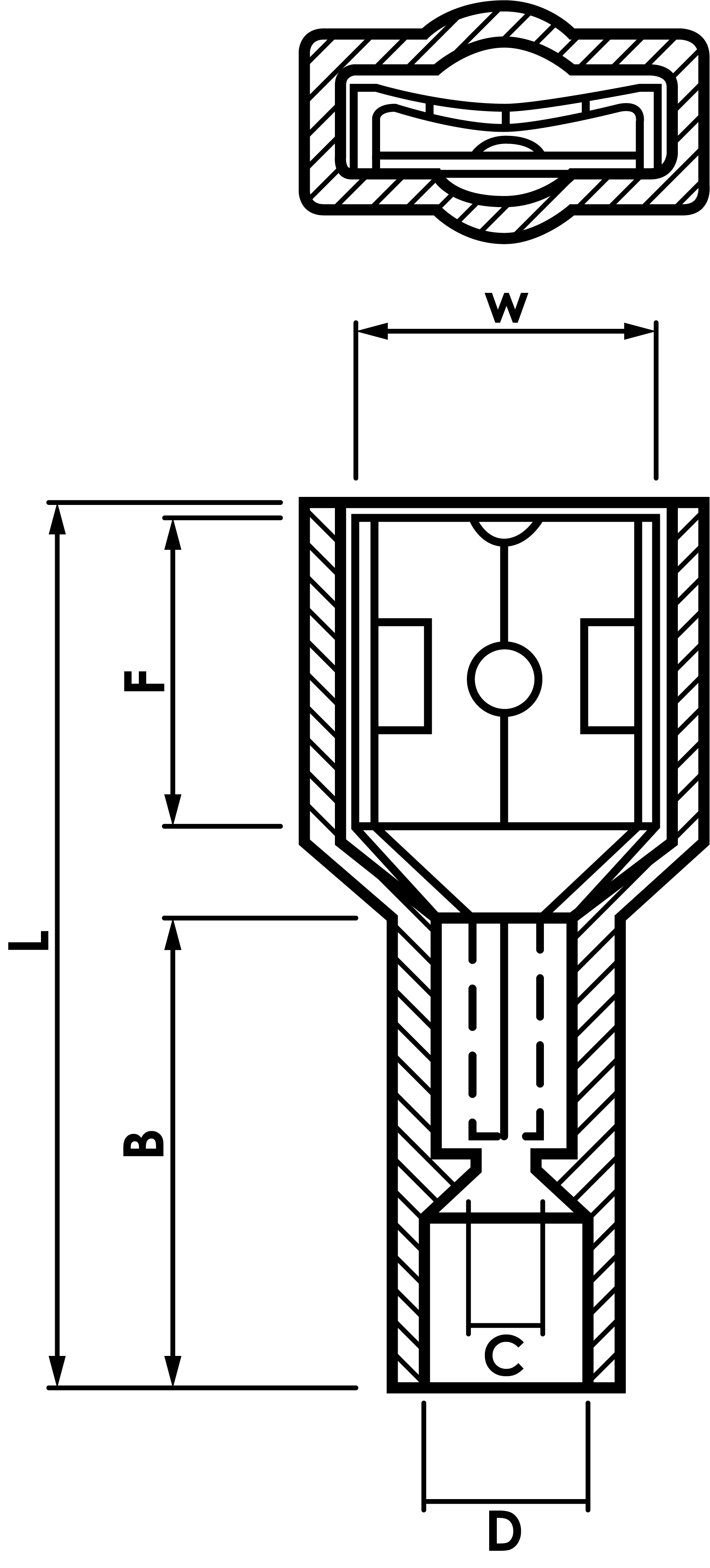

Drawings and product details
