Technical reference

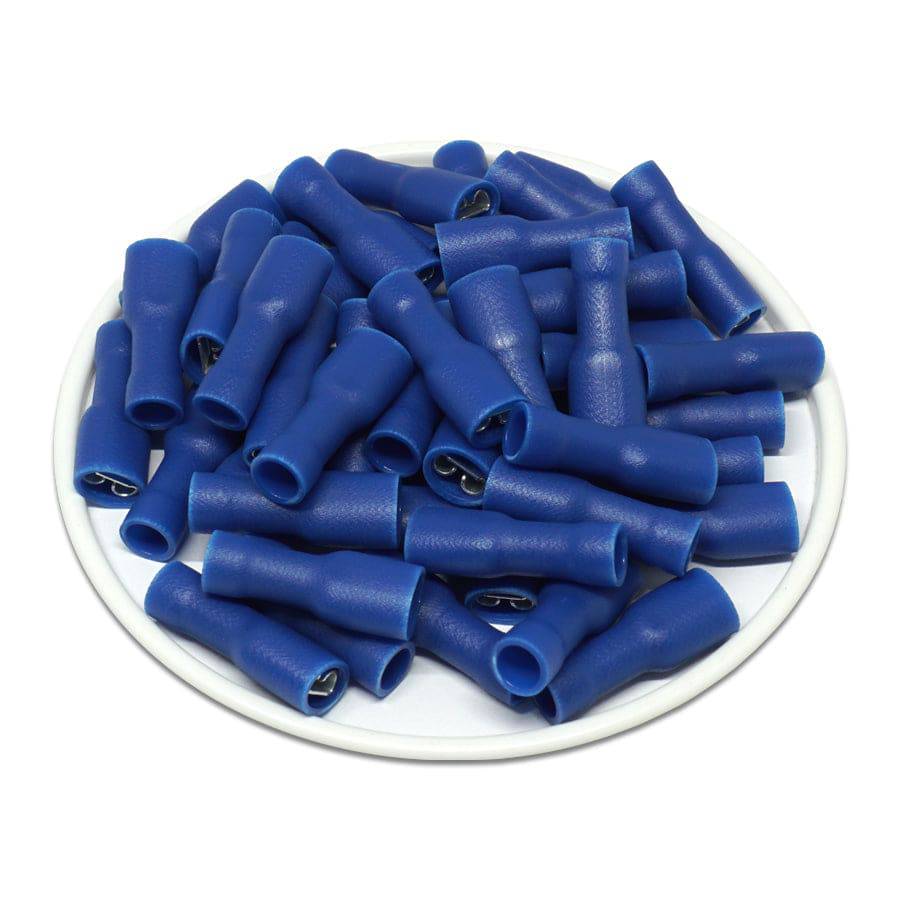

Procurement reference model: FDFV2-187(8). Wire Size: 16-14 AWG; Color: Blue; W: 5.0mm (0.20"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| Color | Blue |
| W | 5.0mm (0.20") |
| F | 6.5mm (0.25") |
| L | 19.3mm (0.76") |
| B | 10mm (0.39") |
| D | 4.5mm (0.18") |
| C | 2.3mm (0.09") |
| Nema Tab | 0.8 x 4.8mm (0.032 x 0.187") |
| Terminal Material | Brass |
| Insulation Material | Vinyl |
| Insulation Profile | Oval |
| Electrical Rating | 75°C - 300 Volts |
| Amp Rating | 15AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
