Technical reference

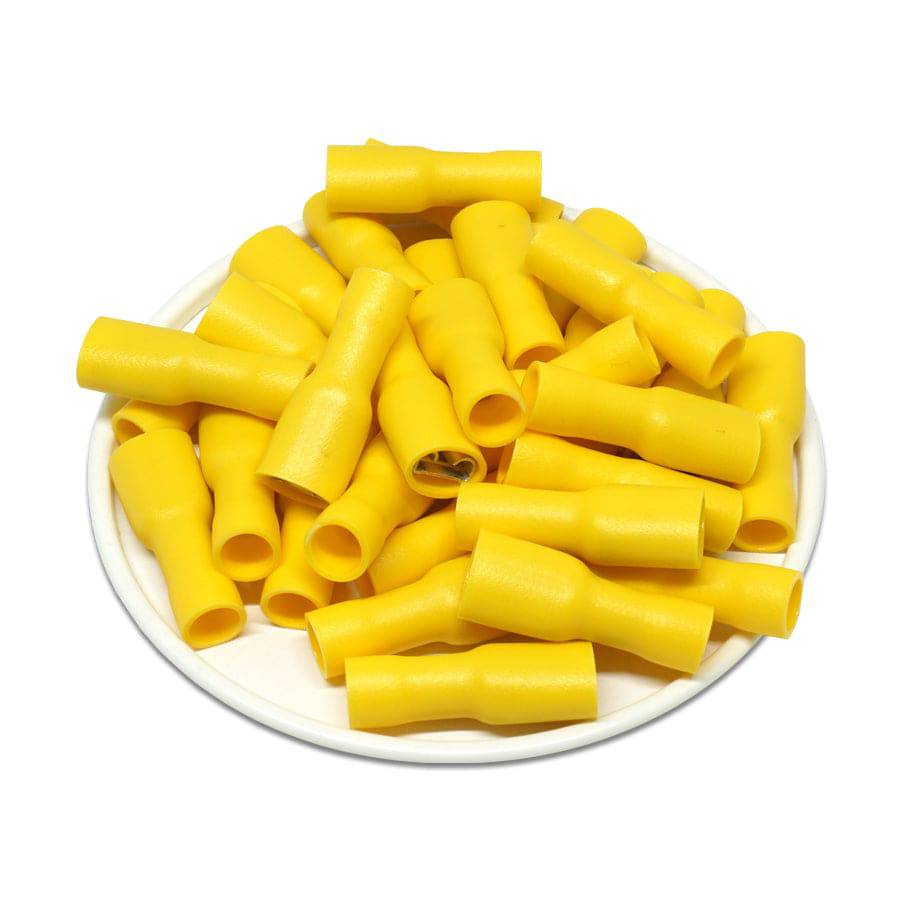

Procurement reference model: FDFV5-250. Wire Size: 12-10 AWG; Color: Yellow; W: 6.6mm (0.26"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| Wire Size | 12-10 AWG |
| Color | Yellow |
| W | 6.6mm (0.26") |
| F | 7.5mm (0.30") |
| L | 24.3mm (0.96") |
| B | 12.5mm (0.49") |
| D | 5.5mm (0.22") |
| C | 3.4mm (0.13") |
| Nema Tab | 0.8 x 6.4mm (0.032 x 0.250") |
| Terminal Material | Brass |
| Insulation Material | Vinyl |
| Insulation Profile | Oval |
| Electrical Rating | 75°C - 300 Volts |
| Amp Rating | 24AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
