Technical reference
Procurement reference model: DBNB6-16. Wire Size: 6 AWG; W: 0.23" (5.9mm); F: 0.63" (16.0mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 25 · source pack reference |
| Wire Size | 6 AWG |
| W | 0.23" (5.9mm) |
| F | 0.63" (16.0mm) |
| L | 1.18" (29.9mm) |
| E | 0.55" (14.00mm) |
| D | 0.35" (9.0mm) |
| D1 | 0.23" (5.9mm) |
| T | 0.06" (1.58mm) |
| Temperature Rating | 221°F (105°C) |
| Material | Tin-Plated Copper |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Max Electrical Current | 95AMP |

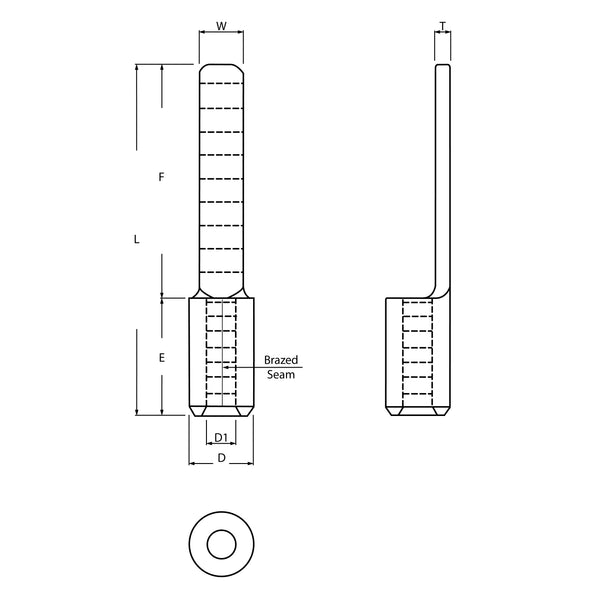

Drawings and product details
