Technical reference

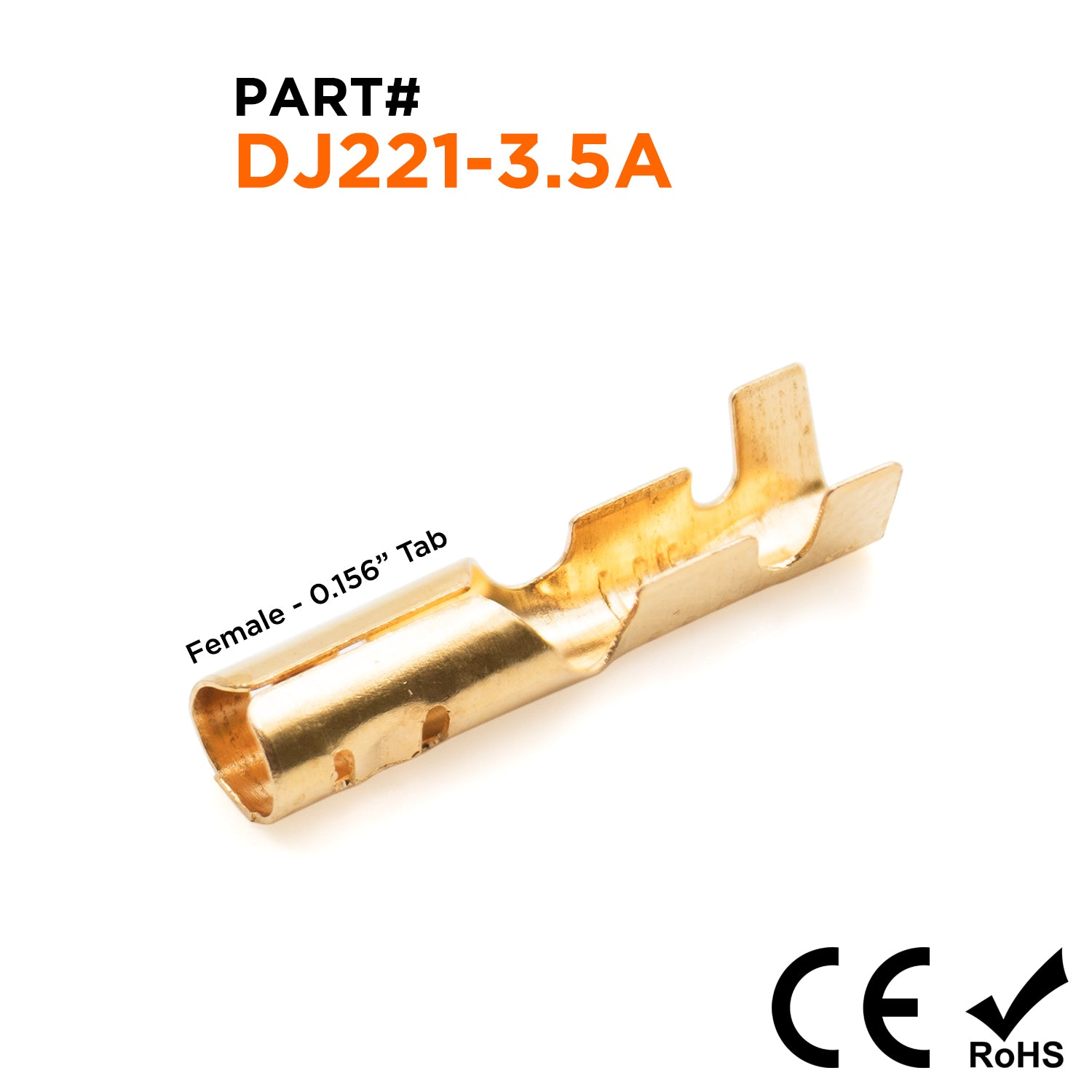

Procurement reference model: DJ221-3.5A. Terminal Type: Female Bullet Connector (Open Barrel Style); Wire Size: 22 to 18 AWG; L: 0.69" (17.6mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Terminal Type | Female Bullet Connector (Open Barrel Style) |
| Wire Size | 22 to 18 AWG |
| L | 0.69" (17.6mm) |
| W (Tab) | 0.156" (4.0mm) |
| Material Thickness | 0.01" (0.35mm) |
| Material | Brass |
| CE Certified | Yes |
| RoHS Compliant | Yes |

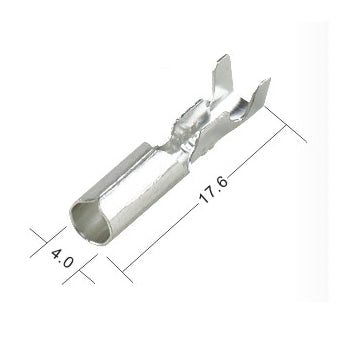

Drawings and product details
