Reference catalog data · Source catalog images
Wire Size: 18-16 AWG; NEMA Tab: 6.3 x 0.4mm (0.25" x 0.016"); L: 19.5mm (0.77")
Availability confirmed with your order

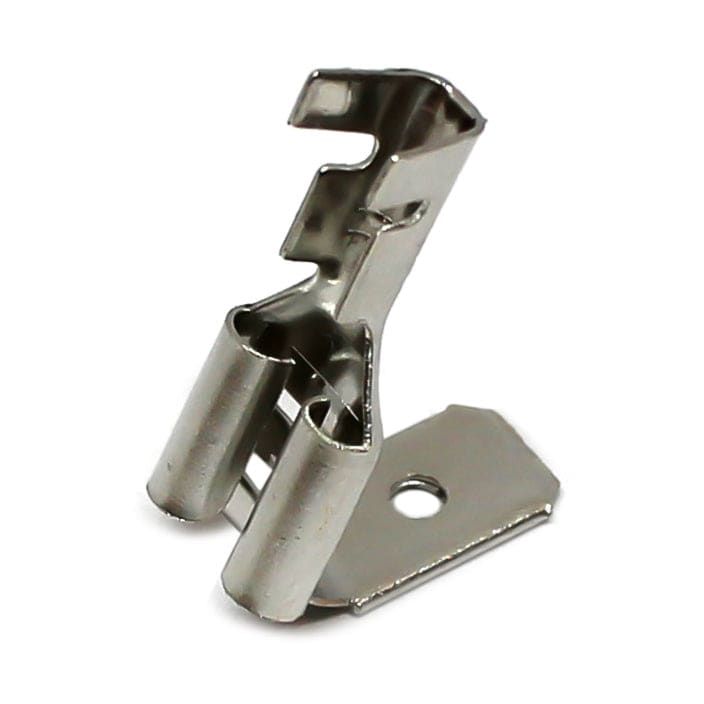

Procurement reference model: DJ6212D63B. Wire Size: 18-16 AWG; NEMA Tab: 6.3 x 0.4mm (0.25" x 0.016"); L: 19.5mm (0.77"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|

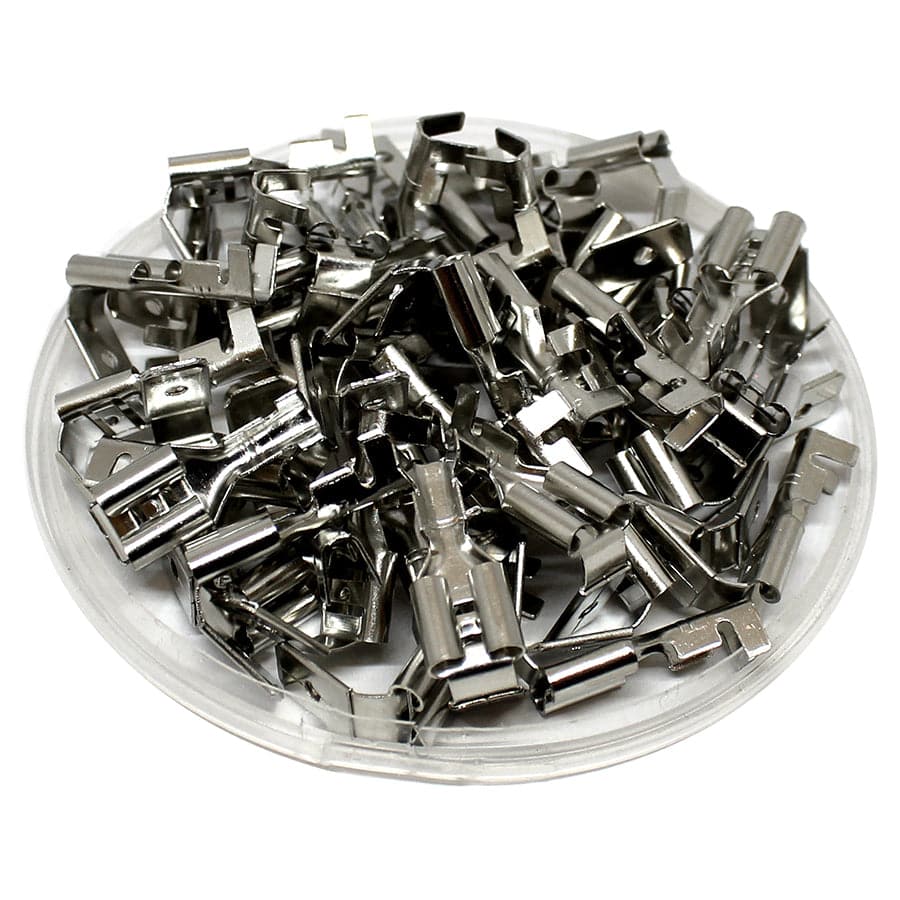

| Reference pack size | 100 · source pack reference |
| Wire Size | 18-16 AWG |
| NEMA Tab | 6.3 x 0.4mm (0.25" x 0.016") |
| L | 19.5mm (0.77") |
| W | 7.7mm (0.30") |
| Material | Brass |
| Surface Treatment | Tin Plated |
| CE Certified | Yes |
| RoHS Compliant | Yes |
In-stock mixed wholesale: dispatch in 5 working days. Customization: from 15 days, with exact timing confirmed in the quotation.
Built for small wholesalers, retailers and online sellers: combine electrical accessories at wholesale prices and compare shipping options through our own freight forwarding team.
Ask us to compare suitable transport options for your destination, budget and required arrival date. Freight is quoted separately from product prices.
Request a freight comparison →From 500 units of each SKU, with no minimum order value. Final pricing depends on quantities, branding, packaging and specification changes. One-time fees are itemized separately.
Wire Size: 22 to 18 AWG · NEMA Tab: 2.8 x 0.8mm (0.11" x 0.031")
Wire Size: 16-14 AWG · NEMA Tab: 6.3 x 0.4mm (0.25" x 0.016")
Reference wire range: 18 to 16 AWG
Wire Size: 18 to 16 AWG · NEMA Tab: 6.3 x 0.35mm (0.25" x 0.01")
