Technical reference

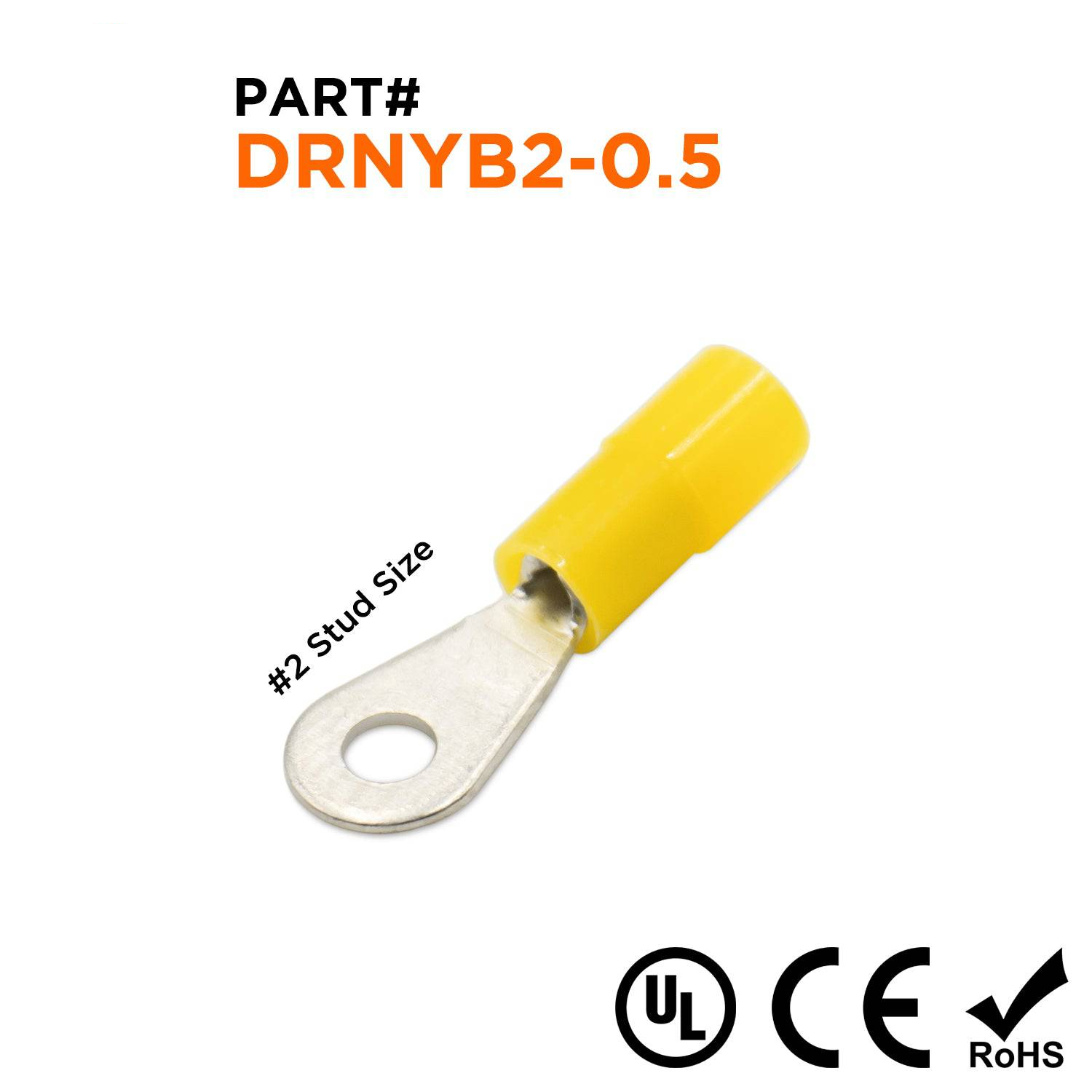

Procurement reference model: DRNYB2-05. Wire Range: 26-22 AWG; Stud Size: #2; Color: Yellow. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 26-22 AWG |
| Stud Size | #2 |
| Color | Yellow |
| T | 0.50mm (0.02") |
| L | 14mm (0.55") |
| F | 6.0mm (0.23") |
| E | 8.0mm (0.31") |
| W | 5.0mm (0.20") |
| D | 2.3mm (0.09") |
| D1 | 1.0mm (0.04") |
| D2 | 2.2mm (0.09") |
| Terminal Material | Tin-Plated Copper |
| Terminal Insulation | Nylon |
| Max Electrical Rating | 600 Volts (105°C) |
| Max Electrical Current | 18 AMP |
| Seam | Butted |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
