Technical reference

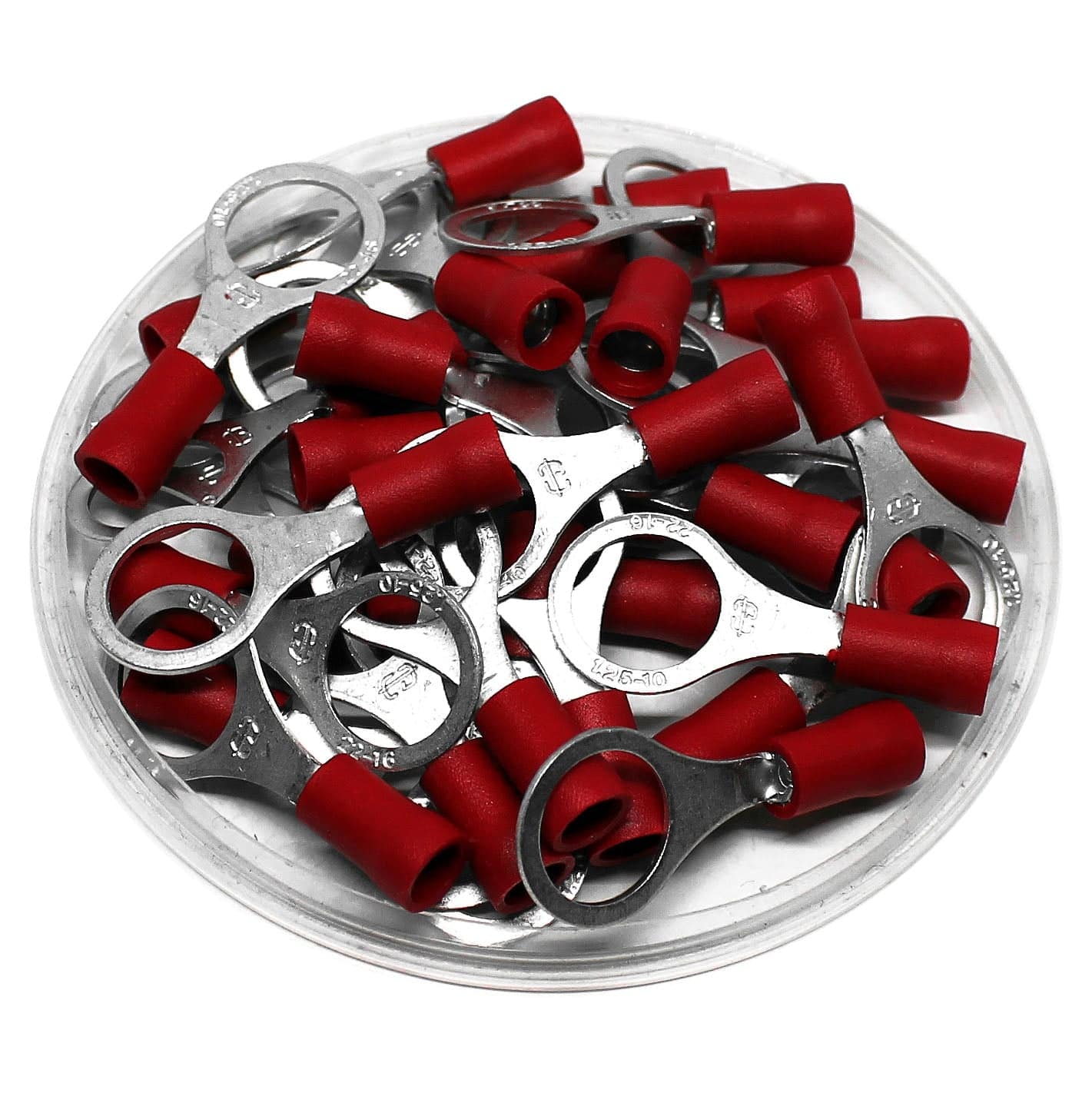

Procurement reference model: DRVB10-1. Wire Size: 22-16 AWG; Stud Size: 3/8" Stud; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 22-16 AWG |
| Stud Size | 3/8" Stud |
| Color | Red |
| T | 0.8mm (.03") |
| L | 22mm (0.87") |
| F | 12mm (0.472") |
| E | 10mm (0.39") |
| W | 14mm (0.55") |
| D | 4.0mm (0.157") |
| D1 | 1.7mm (0.067") |
| D2 | 10.5mm (0.413") |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Vinyl |
| Max Electrical Rating | 600 Volts (105 o C) |
| Seam | Butted |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
