Technical reference

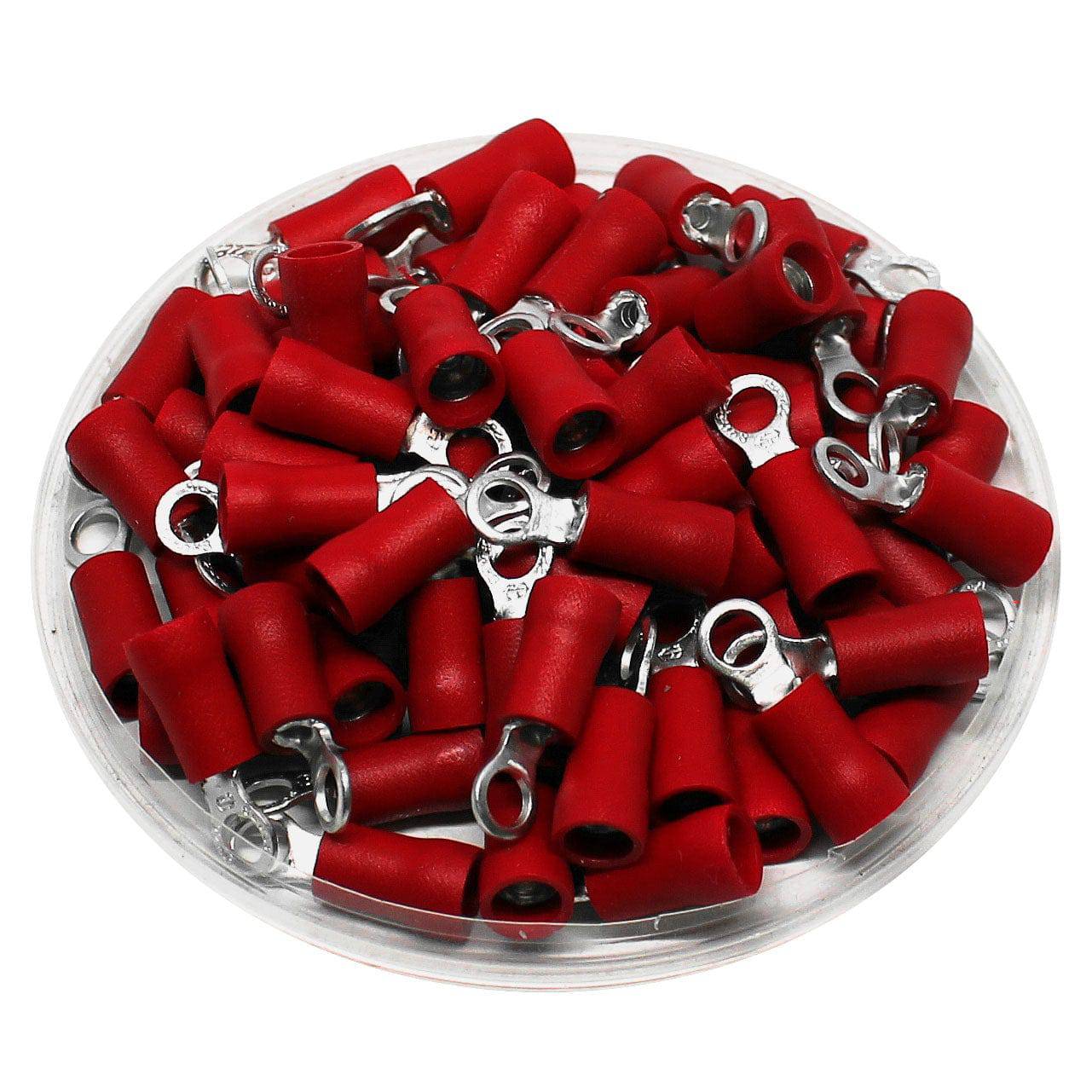

Procurement reference model: DRVBS5-1. Wire Size: 22-16 AWG; Stud Size: #10; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Stud Size | #10 |
| Color | Red |

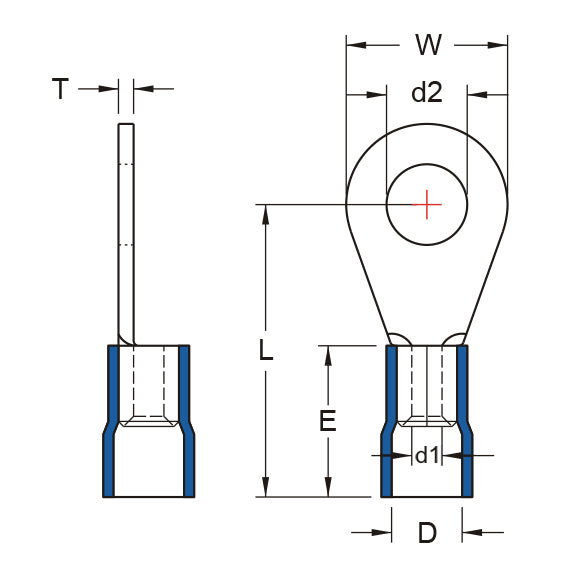

| T | 0.8mm (.03") |
| L | 17.5mm (0.69") |
| E | 10mm (0.39") |
| W | 8.0mm (0.315") |
| D | 4.0mm (0.157") |
| D1 | 1.6mm (.06") |
| D2 | 5.3mm (0.209") |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Vinyl |
| Max Electrical Rating | 600 Volts (105 o C) |
| Seam | Butted |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
