Technical reference

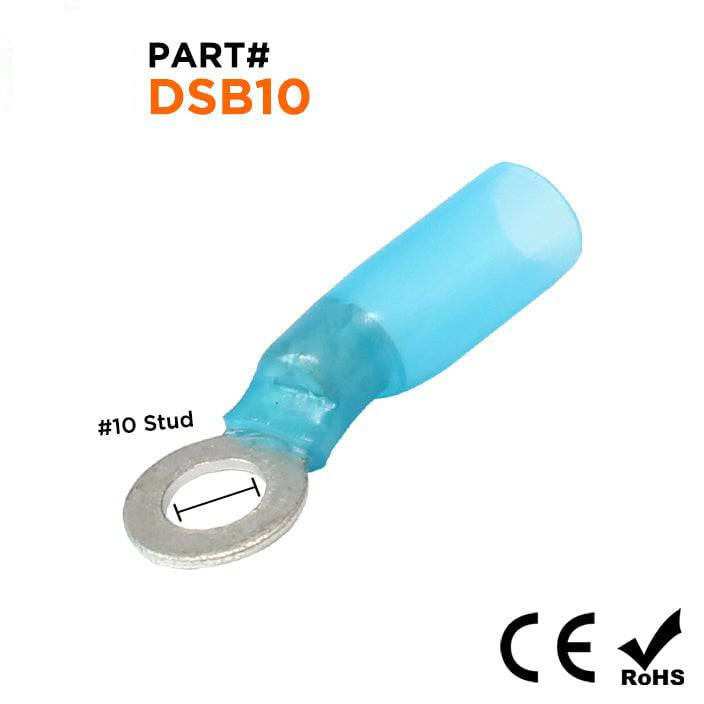

Procurement reference model: DSB10. Wire Size: 16 to 14 AWG; Stud Size: #10; Color: Blue. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|

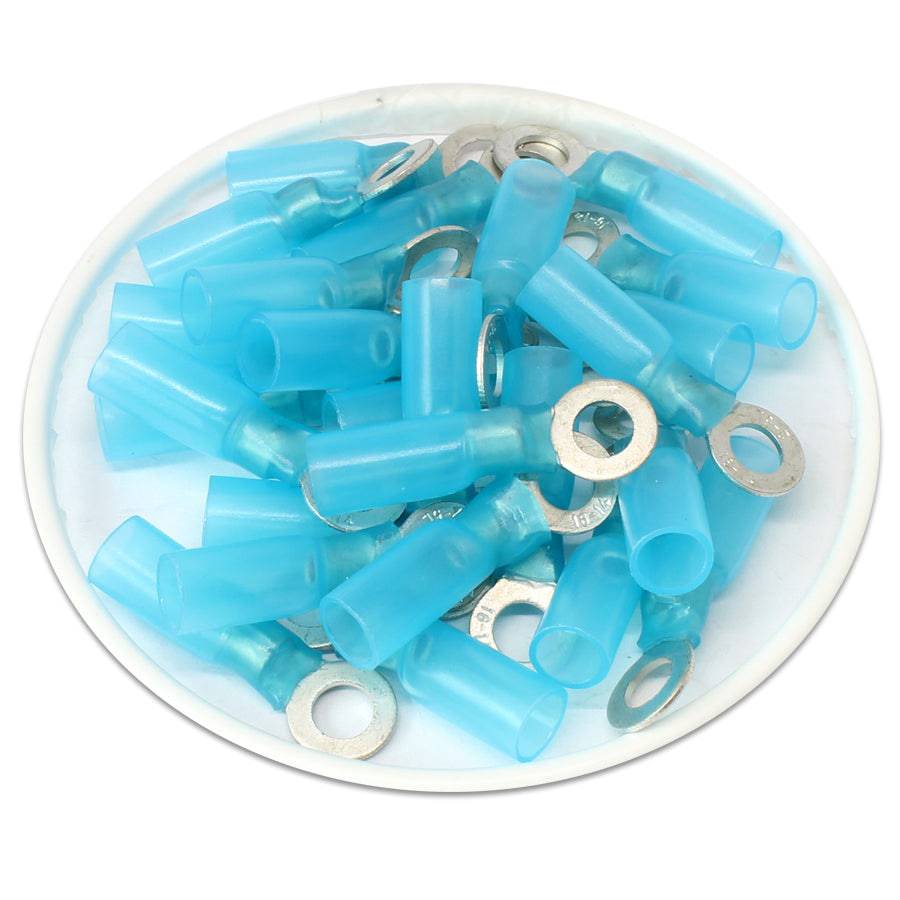

| Reference pack size | 25 · source pack reference |
| Wire Size | 16 to 14 AWG |
| Stud Size | #10 |
| Color | Blue |
| D | 5.8mm (0.23") |
| D1 | 2.2mm (0.09") |
| D2 | 5.3mm (0.21") |
| B | 9.5mm (0.37") |
| E | 21.0mm (0.83") |
| L | 30.0mm (1.18") |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Polyolefin |
| Temperature Rating | -67 o F to 221 o F (-55 o C to 125 o C) |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
