Technical reference

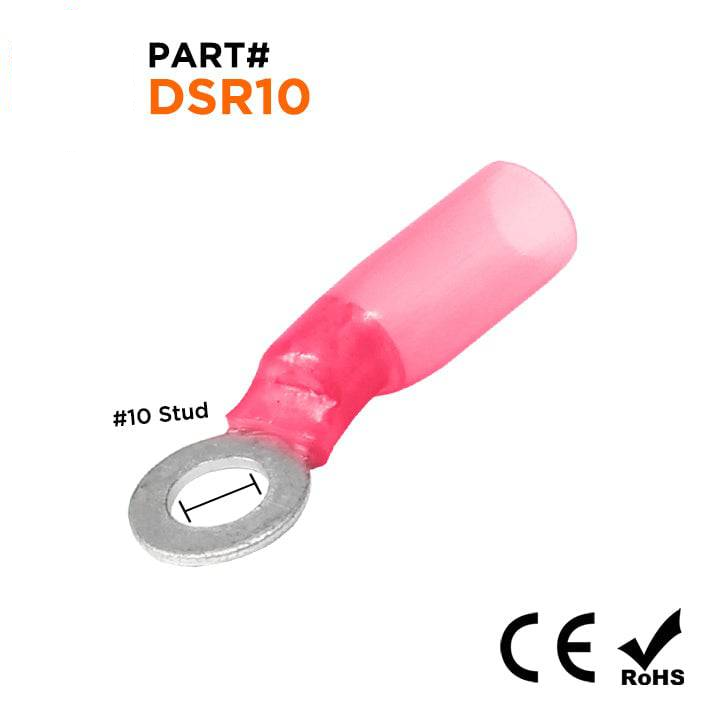

Procurement reference model: DSR10. Wire Size: 22 to 16 AWG; Stud Size: #10; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|

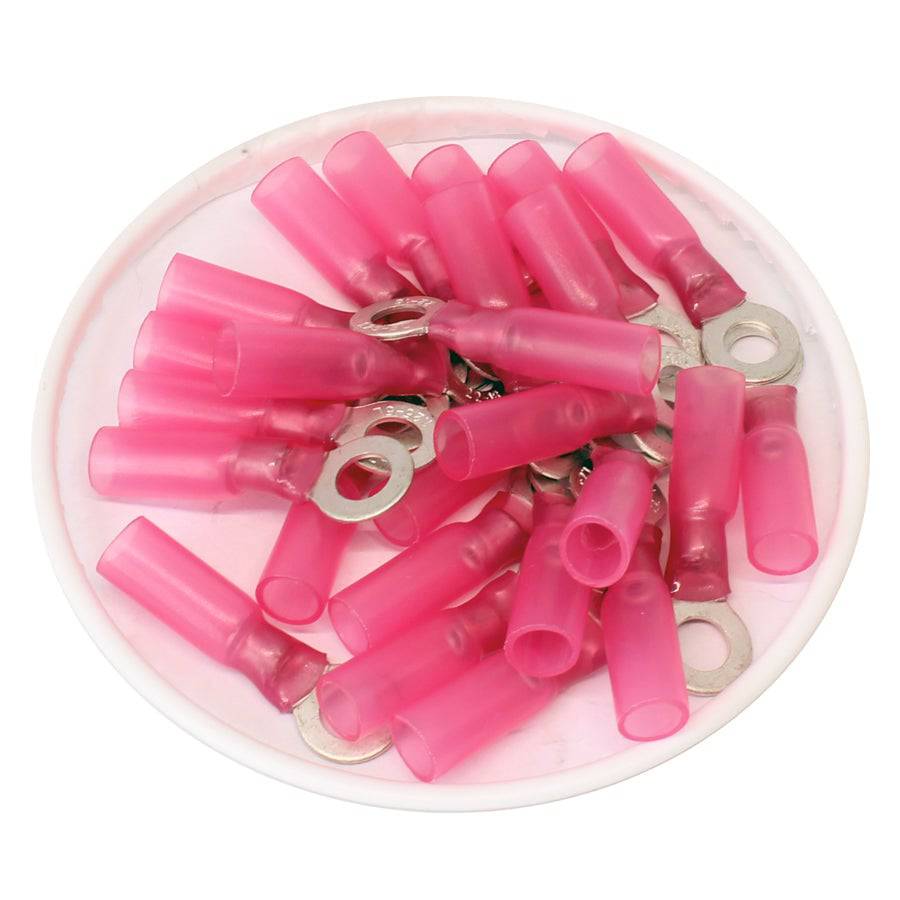

| Reference pack size | 25 · source pack reference |
| Wire Size | 22 to 16 AWG |
| Stud Size | #10 |
| Color | Red |
| D | 4.8mm (0.19") |
| D1 | 1.6mm (0.19") |
| D2 | 5.3mm (0.21") |
| B | 8.5mm (0.37") |
| E | 21.0mm (0.83") |
| L | 30.0mm (1.18") |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Polyethylene |
| Temperature Rating | -67 o F to 221 o F (-55 o C to 125 o C) |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
