Technical reference

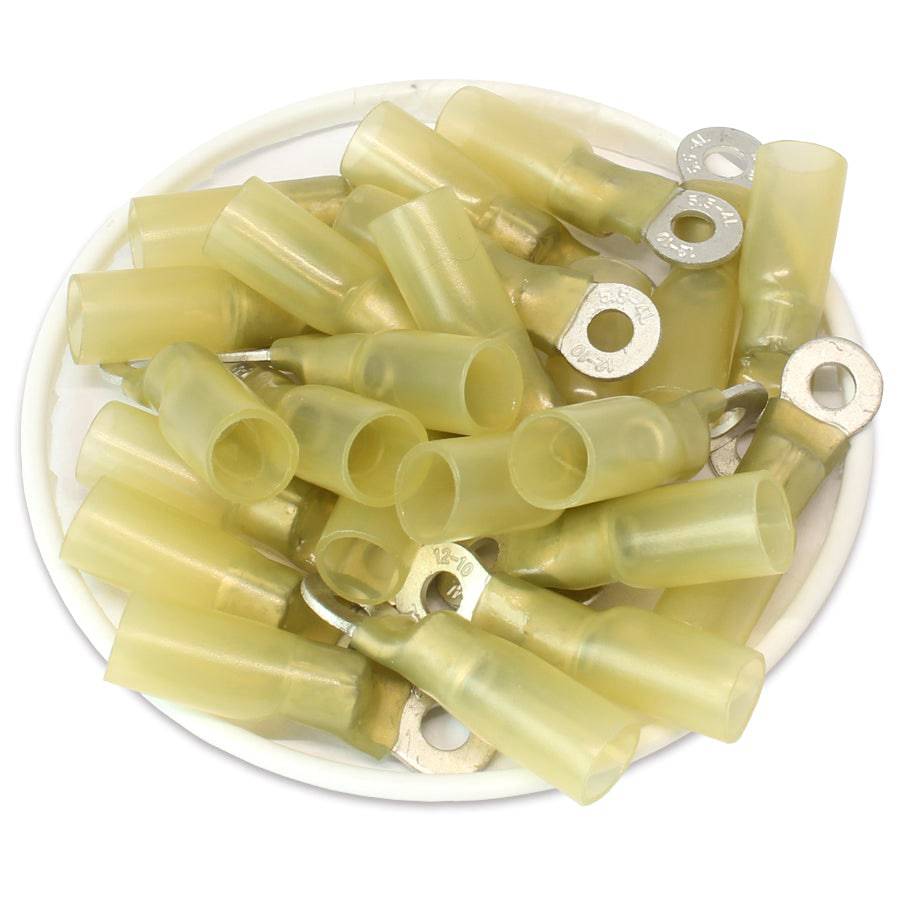

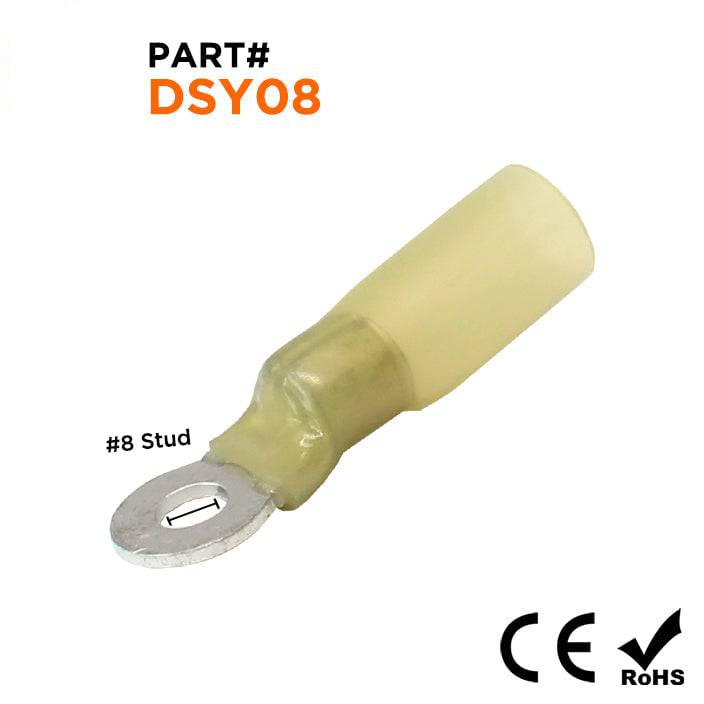

Procurement reference model: DSY08. Wire Size: 12 to 10 AWG; Stud Size: #8; Color: Yellow. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 25 · source pack reference |
| Wire Size | 12 to 10 AWG |
| Stud Size | #8 |
| Color | Yellow |
| D | 6.8mm (0.27") |
| D1 | 3.4mm (0.13") |
| D2 | 4.3mm (0.17") |
| B | 9.5mm (0.37") |
| E | 25.0mm (0.98") |
| L | 32.0mm (1.26") |
| Material | Tin-Plated Copper |
| Insulation Material | Polyolefin |
| Max Electrical Rating | 600 Volts |
| Temperature Rating | -67 o F to 221 o F (-55 o C to 125 o C) |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
