Technical reference

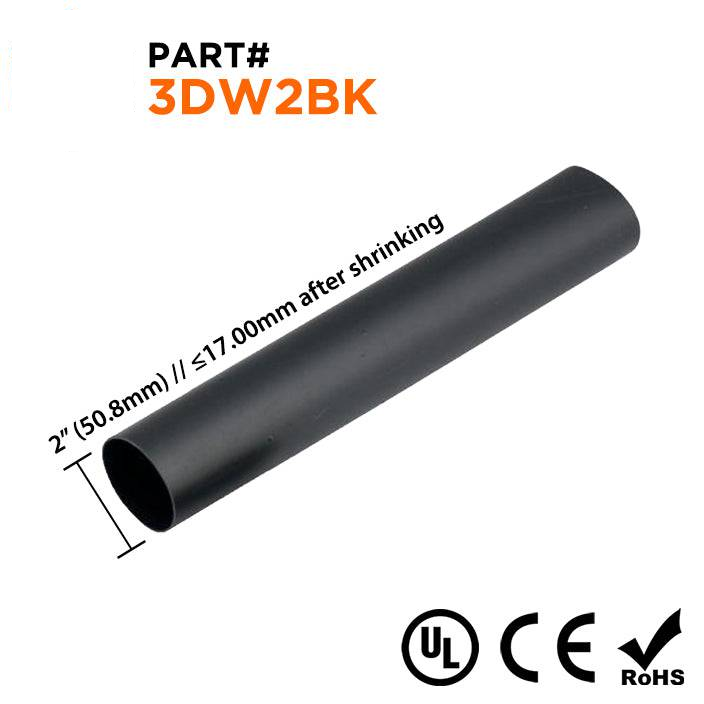

Procurement reference model: 3DW2BK. Size (Before Shrinking): 2" (50.8mm); Size (After Shrinking): ≤17.00mm; Wire Size: 17.3-50mm (6-1 AWG). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | length / roll |
|---|---|
| Reference pack size | 1 · source pack reference |
| Size (Before Shrinking) | 2" (50.8mm) |
| Size (After Shrinking) | ≤17.00mm |
| Wire Size | 17.3-50mm (6-1 AWG) |
| Shrink Ratio | 3:1 |
| Material | Flexible Polyolefin |
| Operating Temperature | -67°F to 275°F (-55°C to 135°C) |
| Voltage Rating | 2500V |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Color | Black |
Drawings and product details
