Technical reference

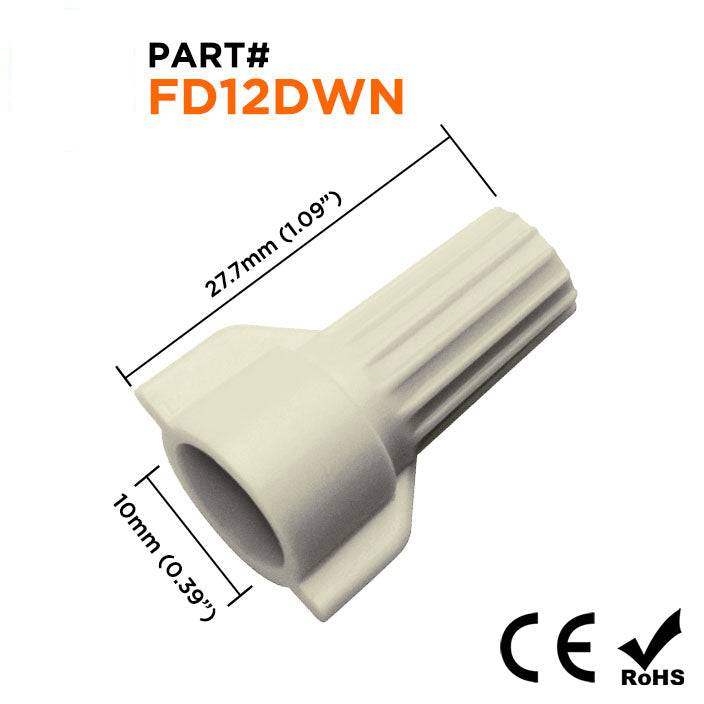

Procurement reference model: FD12DWN. Wire Size: 22-08 AWG; Color: Tan; L: 27.7mm (1.09"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-08 AWG |
| Color | Tan |
| L | 27.7mm (1.09") |
| D | 17.8mm (0.70") |
| D1 | 10mm (0.39") |
| Strip Length (Stranded) | 1/2" (12.6mm) |
| Strip Length (Solid) | 1/2" (12.6mm) |
| Max Voltage | 600V |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Three 22 AWG | Three 10 AWG |
Drawings and product details
