Technical reference

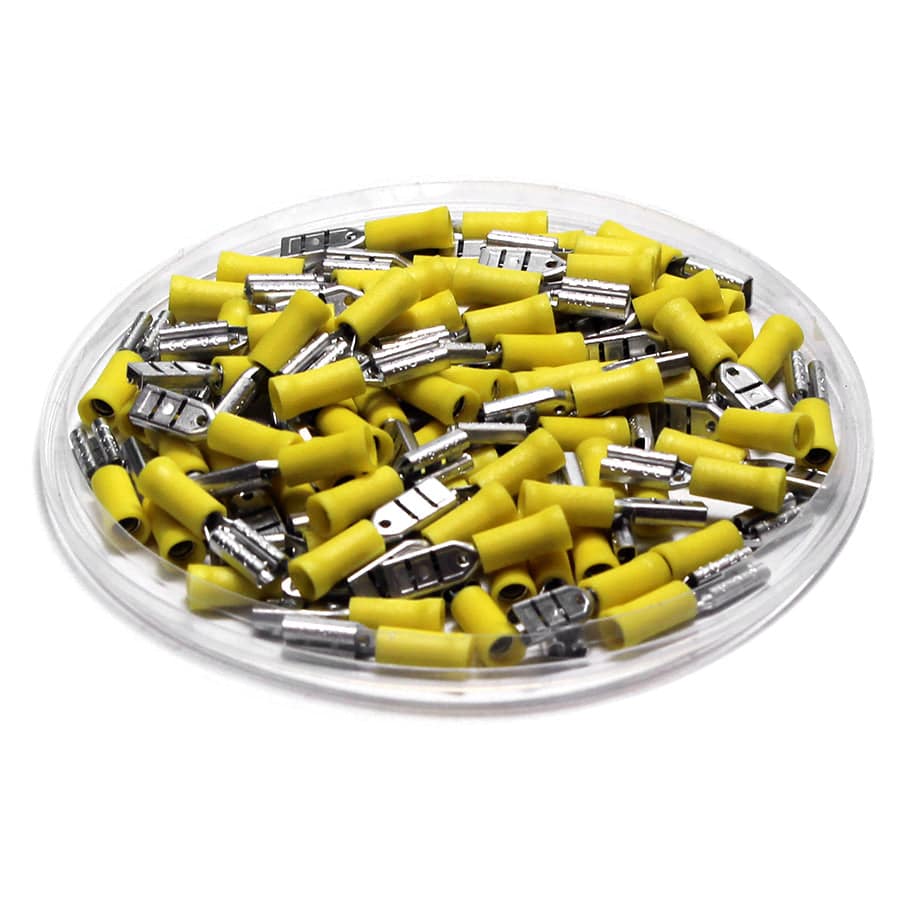

Procurement reference model: FDD05-110(8). Wire Size: 26-22 AWG; Color: Yellow; L: 16mm (0.63"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 26-22 AWG |
| Color | Yellow |
| L | 16mm (0.63") |
| F | 6.4mm (0.25") |
| B | 8.0mm (0.32") |
| W | 3.2mm (0.13") |
| D | 3.2mm (0.13") |
| C | 1.0mm (0.04") |
| Nema Tab | 0.8 x 2.8mm (0.032 x 0.110") |
| Material | Tin Plated Brass |
| Insulation Material | Vinyl |
| Max Electrical Rating | 105°C - 600 Volts |
| Max Electrical Current | 3A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
