Technical reference

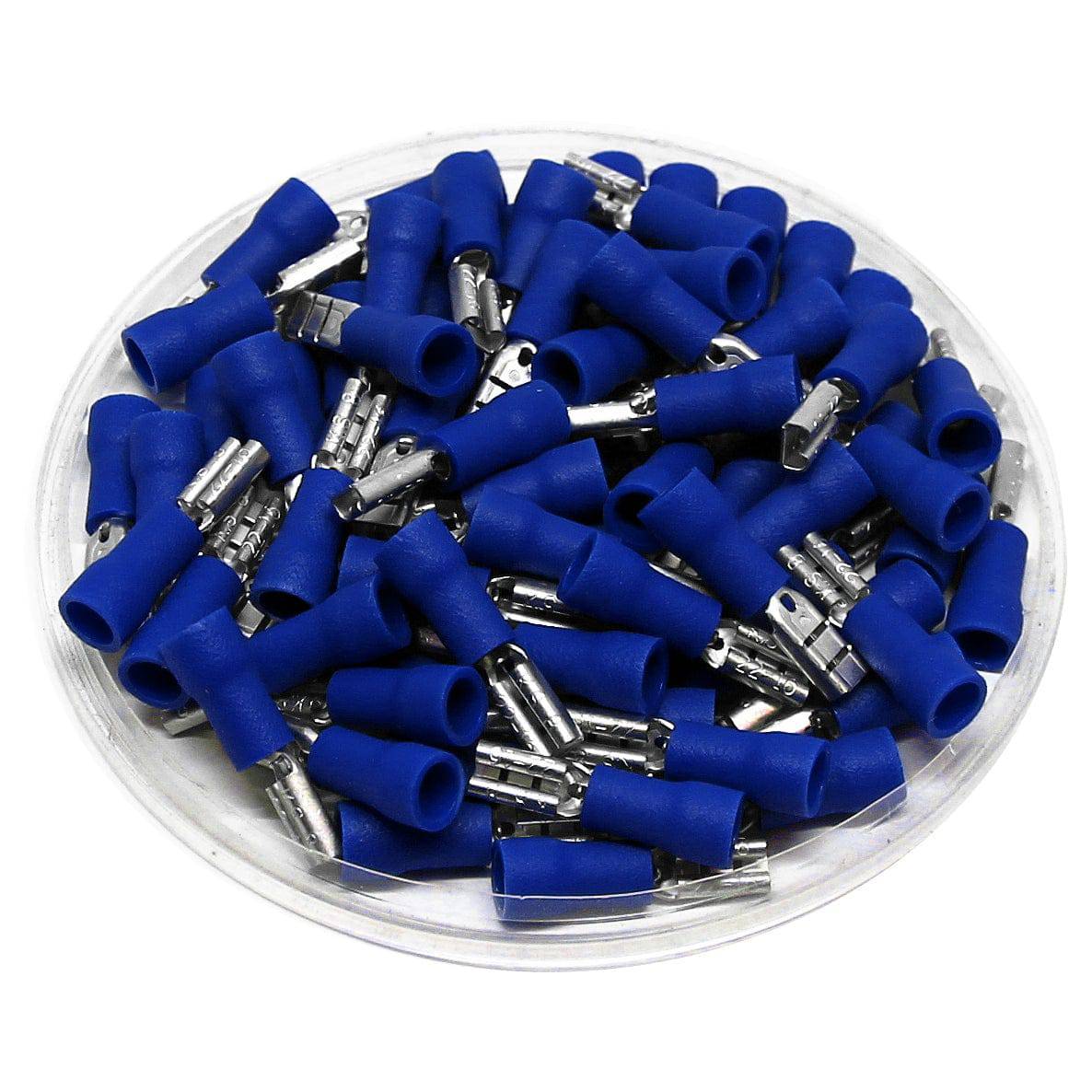

Procurement reference model: FDD2-110(5). Wire Size: 16-14 AWG; Color: Blue; Insulation Material: Vinyl. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| Color | Blue |
| Insulation Material | Vinyl |
| Terminal Material | Tin-Plated Brass |
| Nema Tab | 0.5mm x 2.8mm (0.02" x 0.11") |
| Max Electrical Rating | 105°C (221°F) - 600 Volts |
| T | 0.3mm (0.012") |
| L | 19.0mm (0.74") |
| F | 6.5mm (0.25") |
| F1 | 10.5mm (0.41") |
| W | 3.2mm (0.32") |
| D | 4.7mm (0.18") |
| B | 2.3mm (0.09") |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
