Technical reference

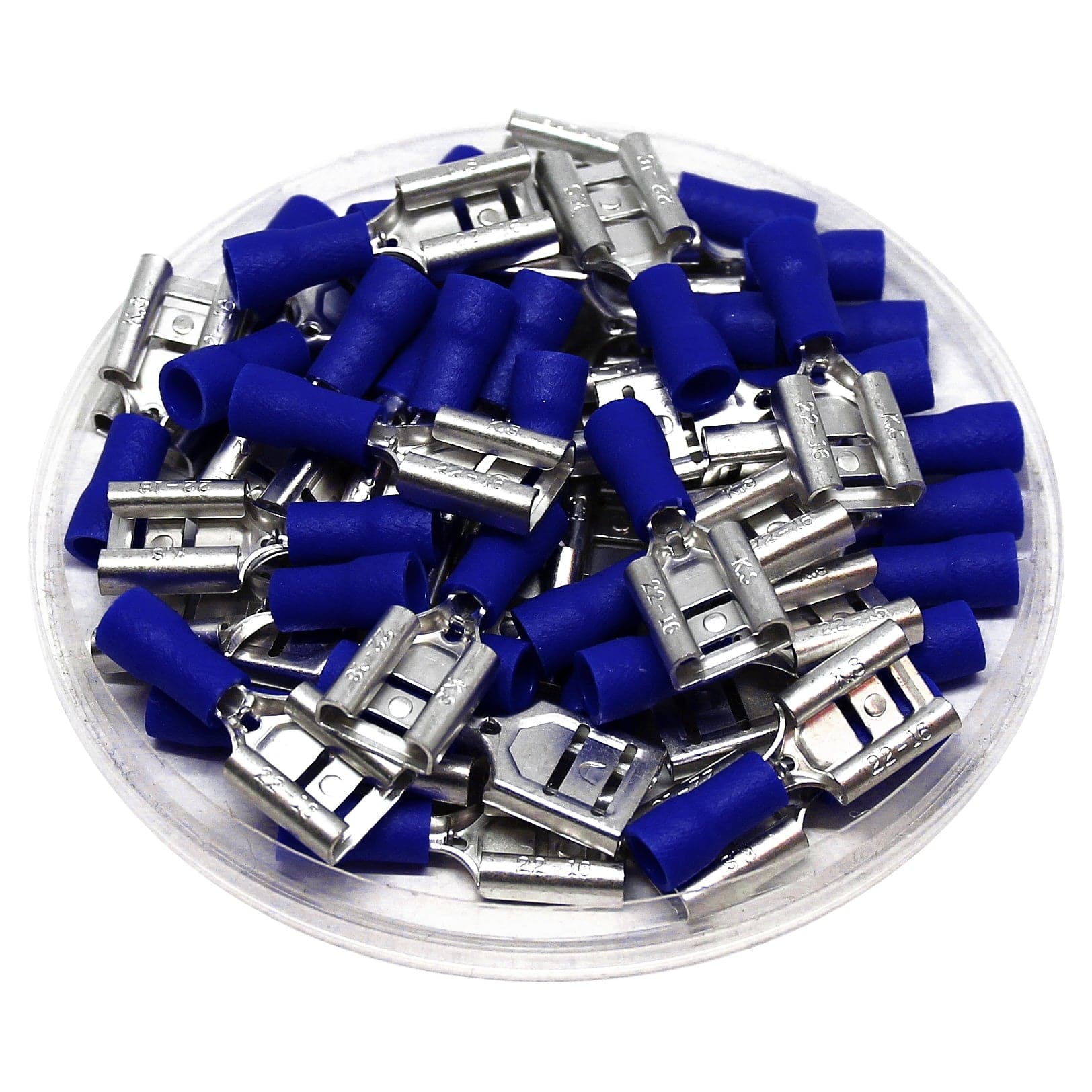

Procurement reference model: FDD2-375. Wire Size: 16-14 AWG; Color: Blue; T: 0.4mm (0.02"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| Color | Blue |

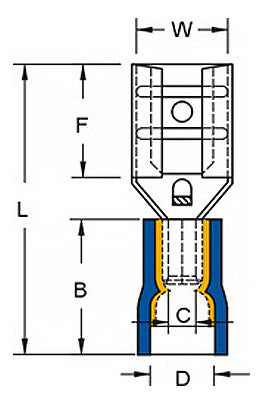

| T | 0.4mm (0.02") |
| L | 26.1mm (1.03") |
| F | 12mm (0.47") |
| B | 10.5mm (0.41") |
| W | 10mm (0.39") |
| D | 4.7mm (0.19") |
| C | 2.3mm (0.09") |
| Nema Tab | 1.2 x 9.4mm (0.047 x 0.370") |
| Material | Tin Plated Brass |
| Insulation Material | Vinyl |
| Max Electrical Rating | 105°C - 600 Volts |
| Max Electrical Current | 15A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
