Technical reference

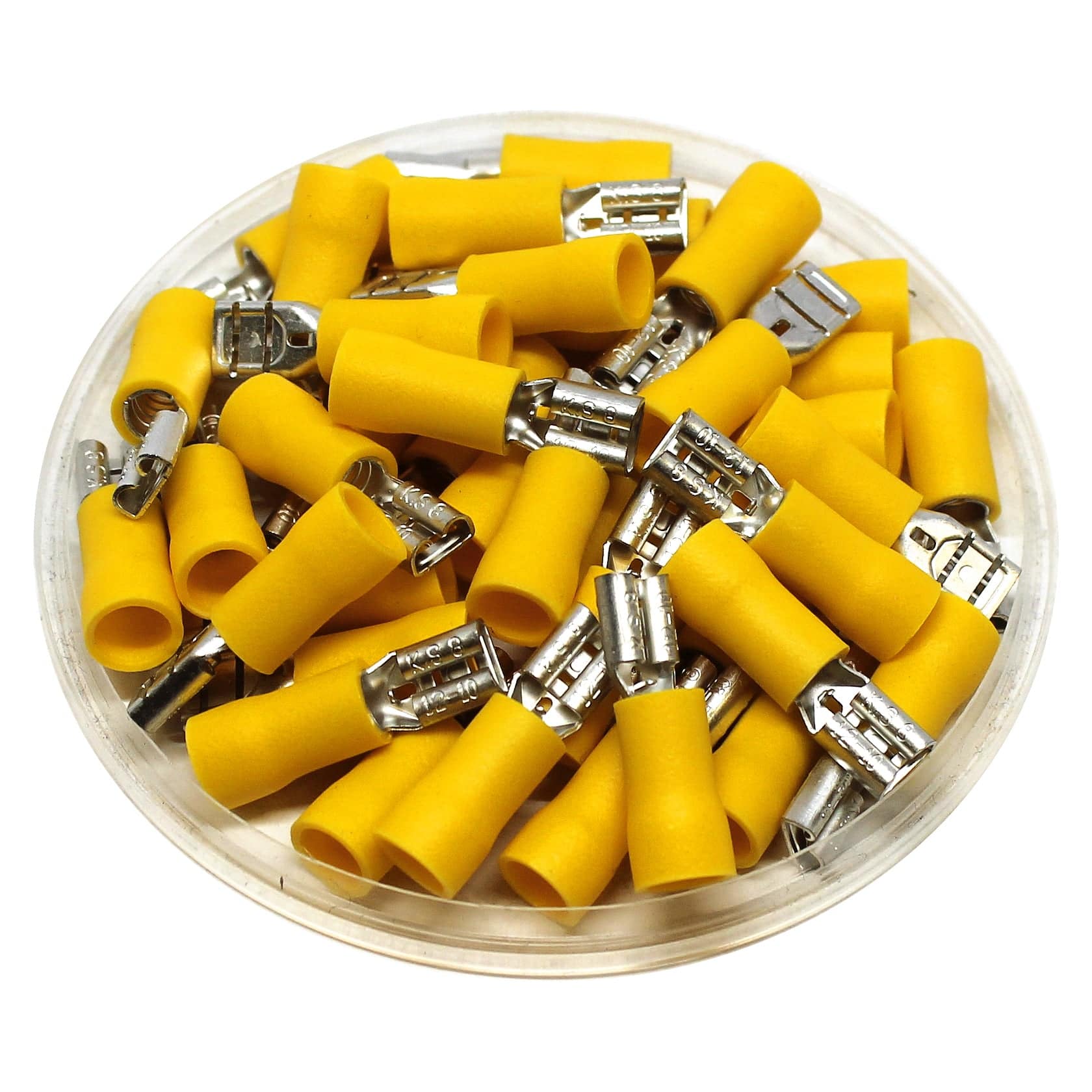

Procurement reference model: FDD5-250. Wire Size: 12-10 AWG; Color: Yellow; L: 23.3mm (0.92"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 12-10 AWG |
| Color | Yellow |
| L | 23.3mm (0.92") |
| F | 7.5mm (0.30") |
| B | 13mm (0.51") |
| W | 6.6mm (0.26") |
| D | 6.2mm (0.24") |
| C | 3.4mm (0.13") |
| Nema Tab | 0.8 x 6.4mm (0.032 x 0.250") |
| Material | Tin Plated Brass |
| Insulation Material | Vinyl |
| Max Electrical Rating | 105°C - 600 Volts |
| Max Electrical Current | 24A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
