Technical reference

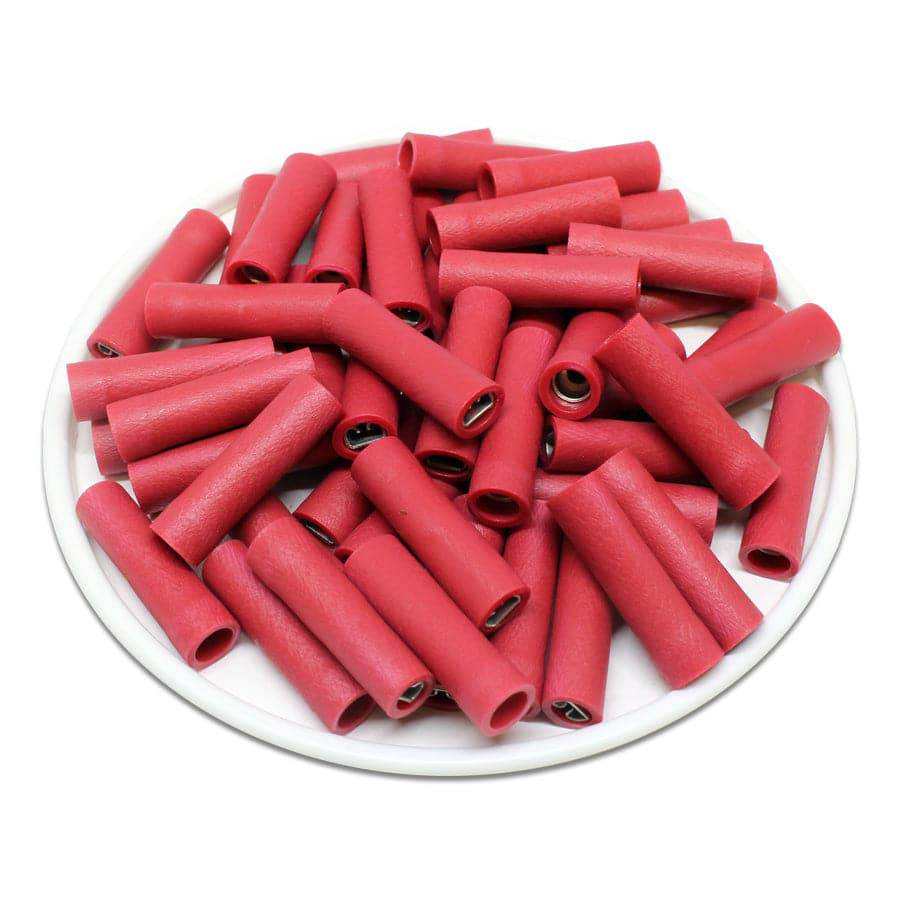

Procurement reference model: FDFD1-110(8). Wire Size: 22-16 AWG; Color: Red; W: 3.2mm (0.13"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 22-16 AWG |
| Color | Red |
| W | 3.2mm (0.13") |
| F | 6.5mm (0.26") |
| L | 19mm (0.75") |
| B | 10.5mm (0.41") |
| D | 4.0mm (0.16") |
| C | 1.7mm (0.67") |
| Nema Tab | 0.8 x 2.8mm (0.032 x 0.110") |
| Terminal Material | Brass (with copper sleeve) |
| Insulation Material | Vinyl |
| Insulation Profile | Oval |
| Electrical Rating | 105°C - 600 Volts |
| Amp Rating | 10AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
