Technical reference

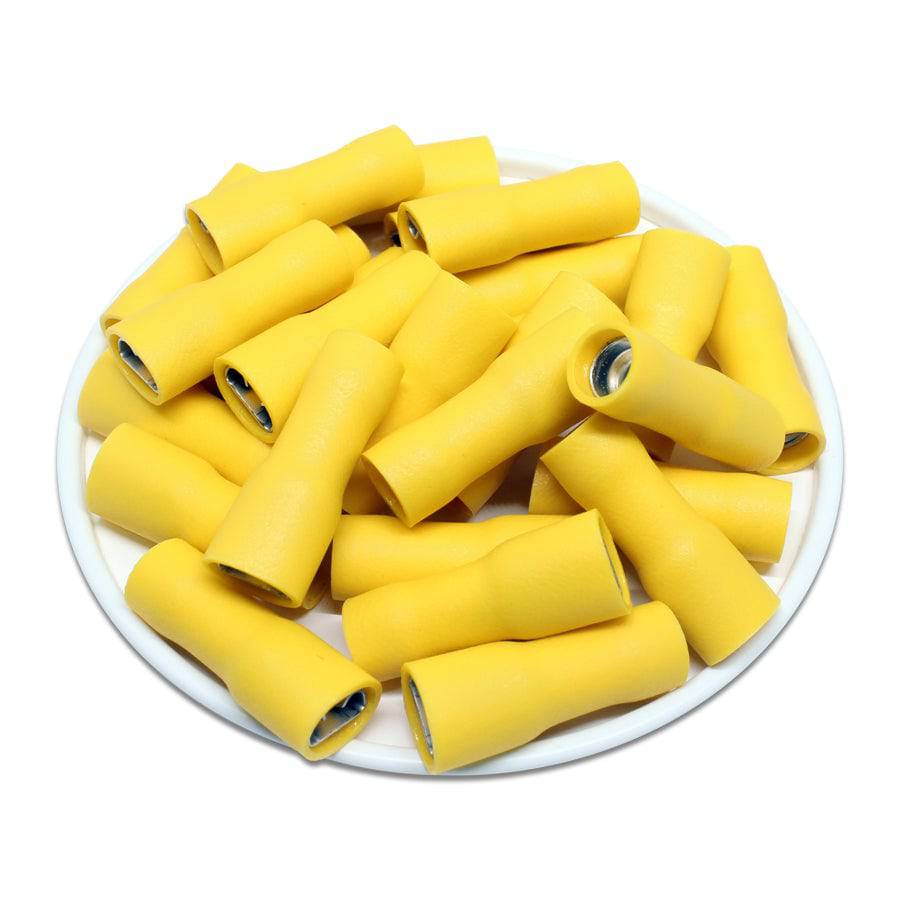

Procurement reference model: FDFD5-250. Wire Size: 12-10 AWG; Stud Size: 1/2" Stud; Color: Yellow. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| Wire Size | 12-10 AWG |
| Stud Size | 1/2" Stud |
| Color | Yellow |

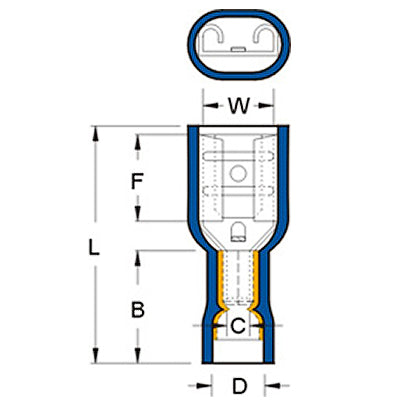

| L | 24.2mm (0.95") |
| F | 7.5mm (0.30") |
| W | 6.6mm (0.26") |
| T | 0.4mm (0.02") |
| B | 12.5mm (0.49") |
| D | 6.2mm (0.24") |
| C | 3.4mm (0.13") |
| Material | Brass |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Max Electrical Rating | 105°C - 600 Volts |
| Max Electrical Current | 24A |
Drawings and product details
