Technical reference

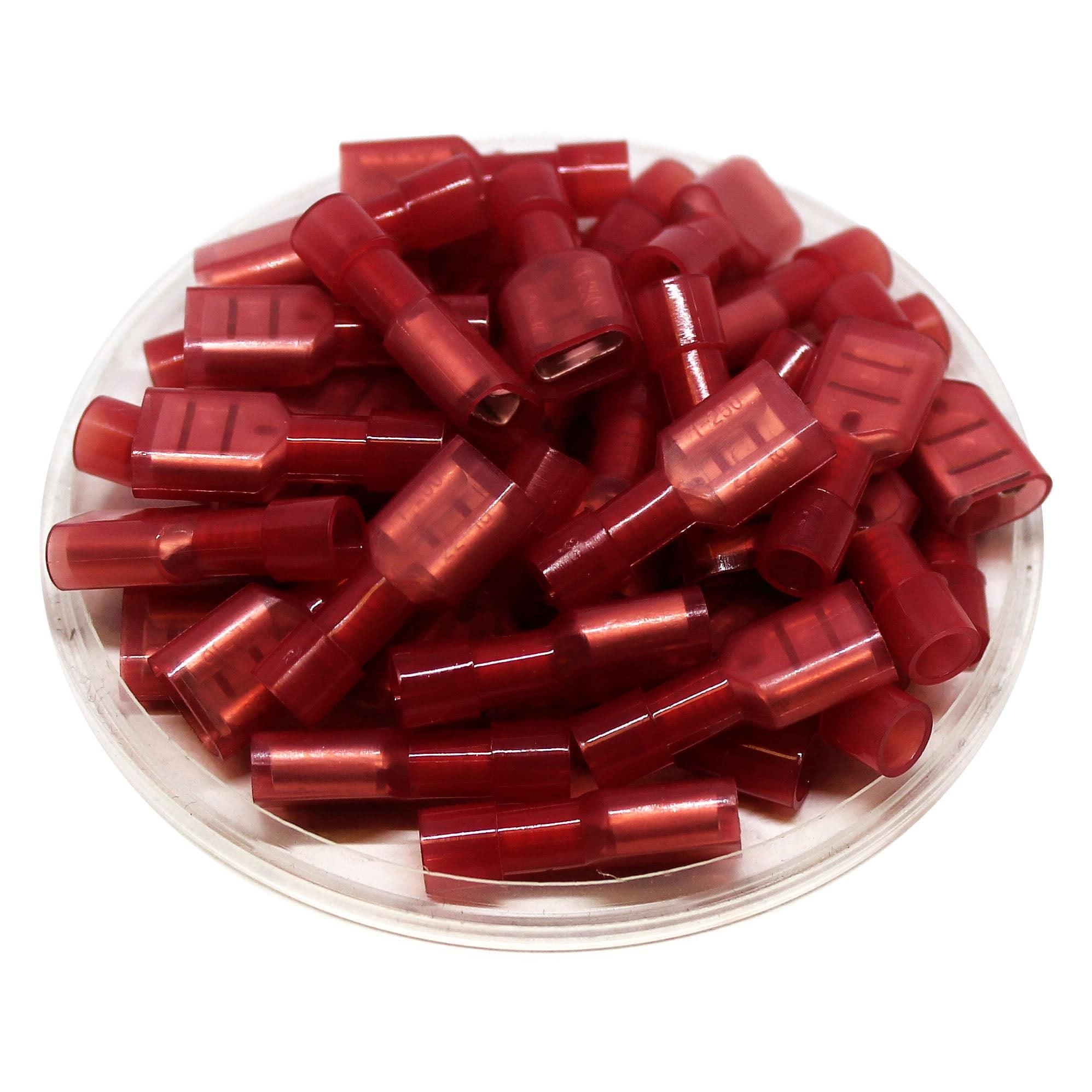

Procurement reference model: FDFN1-250. Wire Size: 22-16 AWG; Color: Red; W: 6.6mm (0.26"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Color | Red |
| W | 6.6mm (0.26") |
| F | 7.5mm (0.295") |
| L | 22mm (0.87") |
| B | 11mm (0.43") |
| D | 4mm (0.16") |
| T | 0.4mm (0.016") |
| Nema Tab | 0.8mm x 6.35mm (0.032" x 0.250") |
| Material | Tin Plated Brass |
| Insulation Material | Nylon |
| Insulation Profile | Oval |
| Max Electrical Rating | 105°C - 300 Volts |
| Max Electrical Current | 10 AMP |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
