Technical reference
Procurement reference model: FDFNS2-250. Wire Size: 16-14 AWG; Color: Blue; W: 6.6mm (0.26"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| Color | Blue |

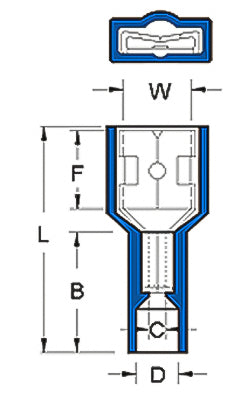

| W | 6.6mm (0.26") |
| F | 7.9mm (0.31") |
| L | 23.0mm (0.91") |
| B | 11.2mm (0.44") |
| D | 4.5mm (0.17") |
| T | 0.5mm (0.02") |
| Nema Tab | 0.8 x 6.3mm (0.03 x 0.25") |
| Terminal Material | Tin-Plated Brass |
| Temperature Rating | 105°C |
| Voltage Rating | 300 Volts |
| Max Electrical Current | 10AMP |
| Terminal Insulation | Nylon |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |

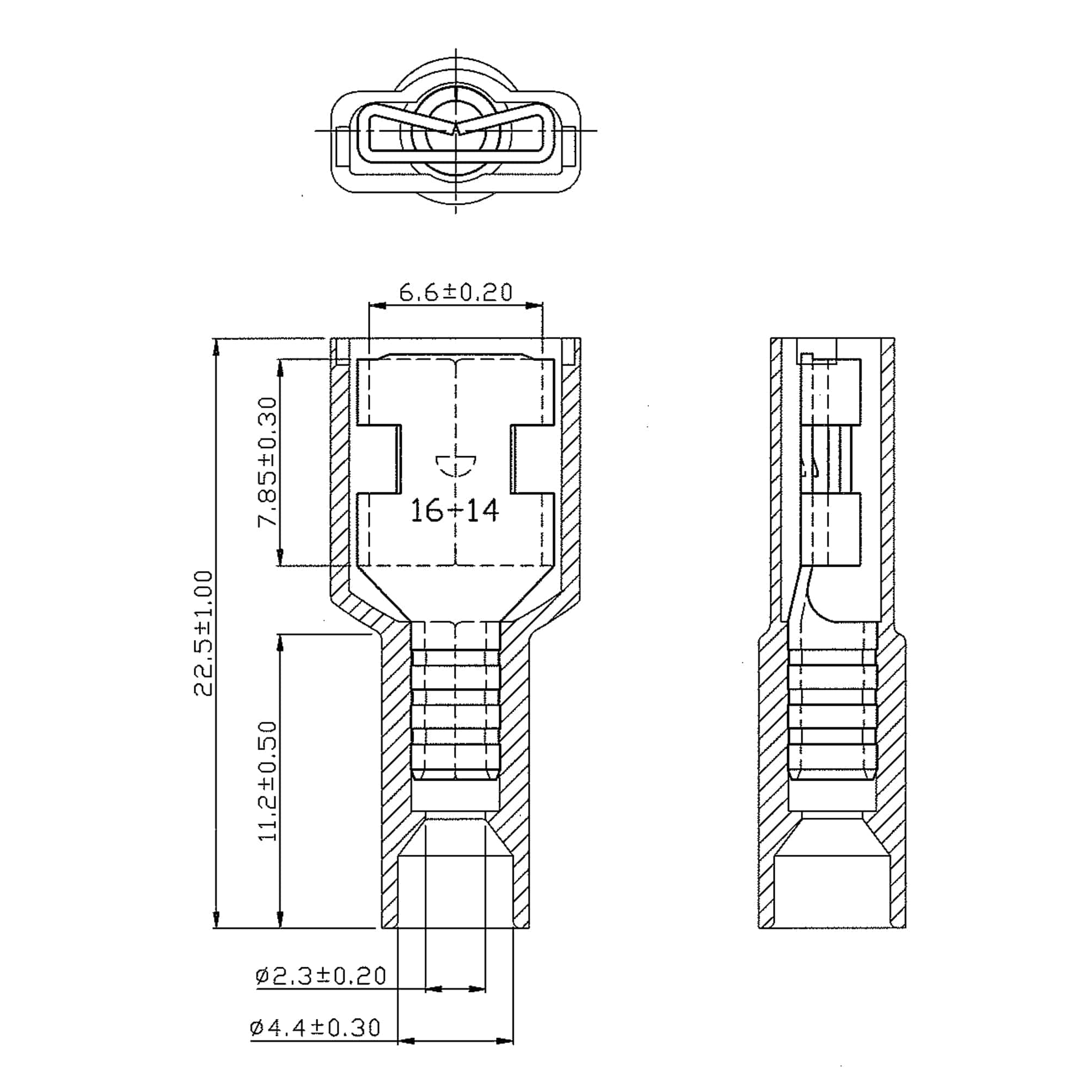

Drawings and product details
