Technical reference

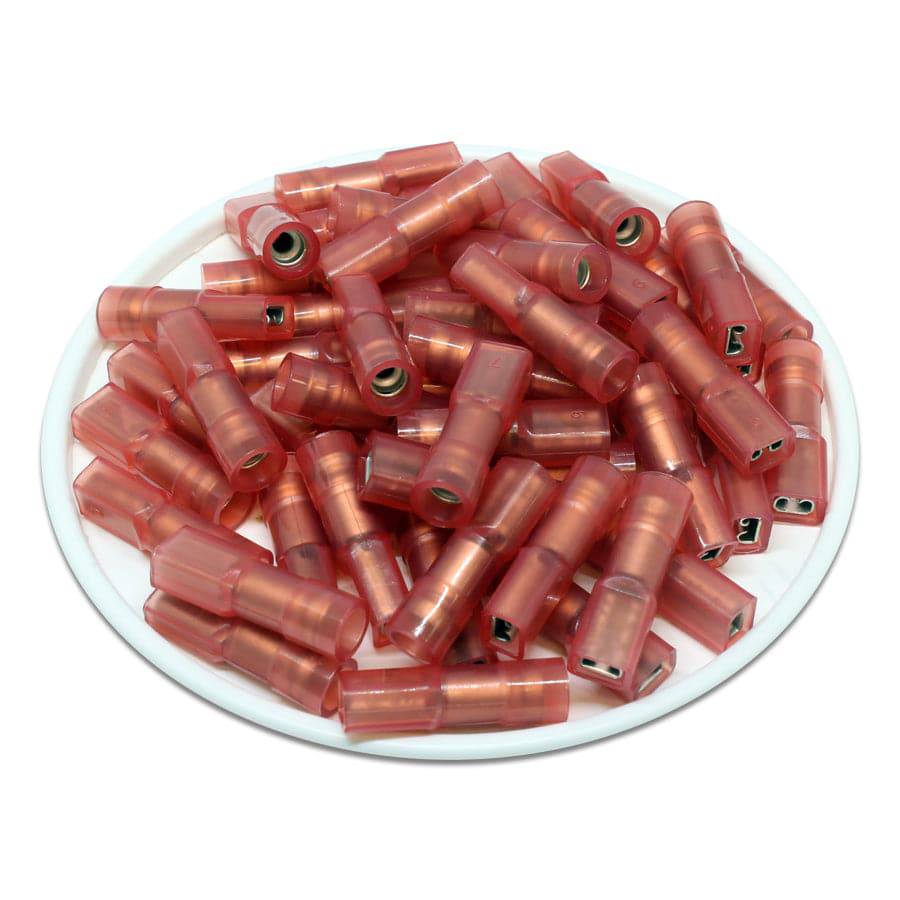

Procurement reference model: FDFNYD1-110(5). Wire Size: 22-16 AWG; Color: Red; W: 3.2mm (0.13"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Color | Red |
| W | 3.2mm (0.13") |
| F | 6.4mm (0.25") |
| L | 19.5mm (0.77") |
| B | 11mm (0.43") |
| D | 4mm (0.16") |
| T | 0.3mm (0.012") |
| Nema Tab | 0.5mm x 2.8mm (0.020" x 0.110") |
| Material | Tin Plated Brass |
| Max Electrical Rating | 105°C - 600 Volts |
| Max Electrical Current | 10 AMP |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
