Technical reference

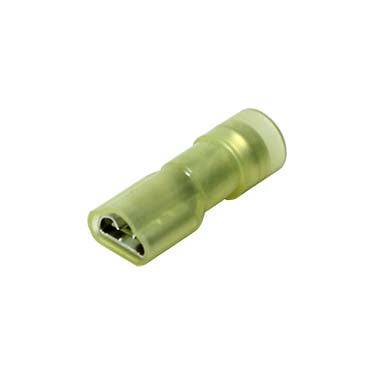

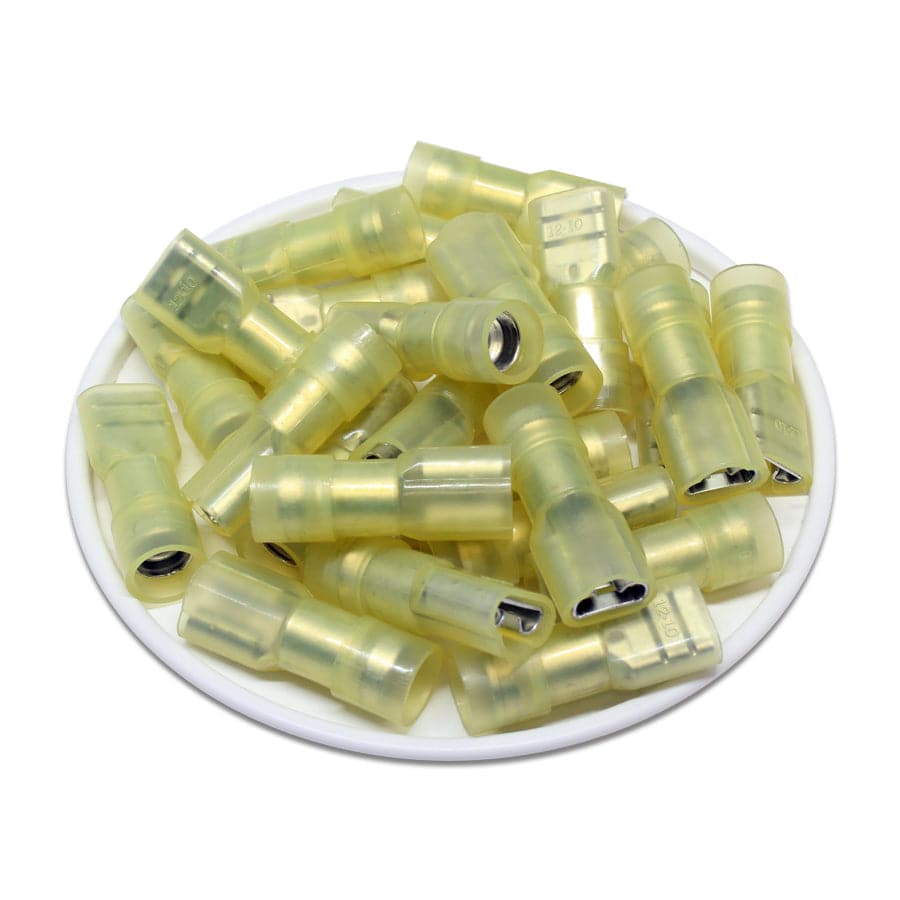

Procurement reference model: FDFNYD5-250. Wire Size: 12-10 AWG; Color: Yellow; Insulation Material: Nylon. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| Wire Size | 12-10 AWG |
| Color | Yellow |
| Insulation Material | Nylon |
| Insulation Profile | Dome |
| Material | Brass |
| Max Electrical Rating | 24 AMP |
| W | 6.6mm (0.26") |
| F | 7.5mm (0.29") |
| L | 24.2mm (0.96") |
| B | 13.0mm (0.51") |
| D | 6.5mm (.25") |
| T | 0.4mm (0.016") |
| Nema Tab | 0.8mm x 6.35mm (0.03" x 0.25") |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
