Technical reference

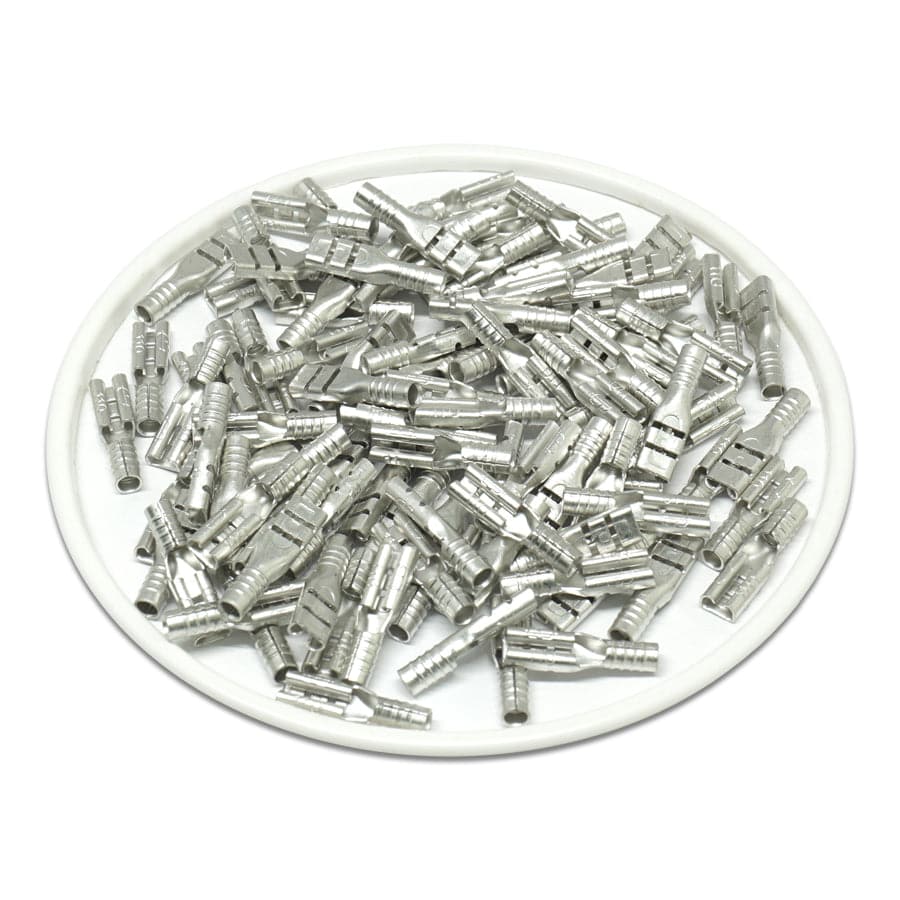

Procurement reference model: FDN1-110(5). Wire Size: 22 to 16 AWG; Nema Tab: 0.5 x 2.8mm (.020 x 0.110"); Max Electrical Current: 10 AMP. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22 to 16 AWG |
| Nema Tab | 0.5 x 2.8mm (.020 x 0.110") |
| Max Electrical Current | 10 AMP |
| Terminal Material | Brass |
| Surface Material | Tin-Plated |
| L | 14.2mm (0.56") |
| F | 6.2mm (0.25") |
| E | 4.9mm (0.19") |
| W | 3.2mm (0.13") |
| D1 | 1.7mm (0.07") |
| D | 2.7mm (0.11") |
| CE Certified | Yes |
| RoHS Compliant | Yes |
