Technical reference

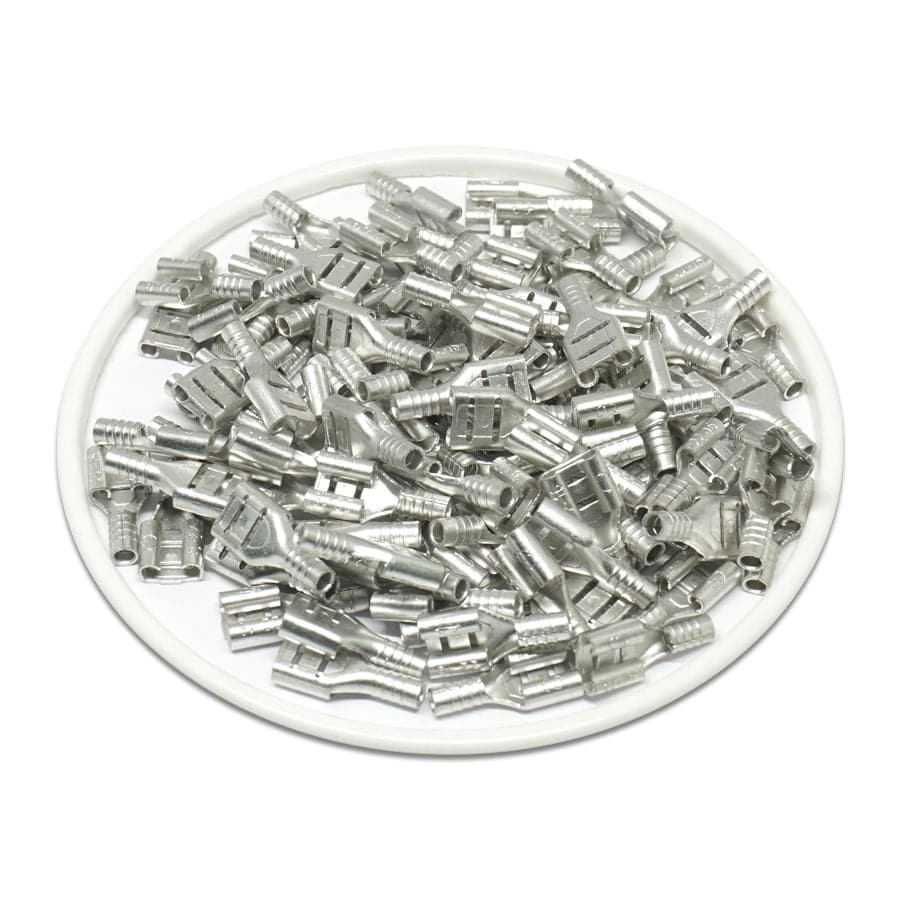

Procurement reference model: FDN1-205(5). Wire Size: 22-16 AWG; Nema Tab: 0.5 x 5.2mm (0.02 x 0.20"); Max Electrical Current: 10AMP. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Nema Tab | 0.5 x 5.2mm (0.02 x 0.20") |
| Max Electrical Current | 10AMP |
| Terminal Material | Brass |
| Surface Material | Tin-Plated |
| L | 13.9mm (0.55") |
| F | 5.6mm (0.22") |
| E | 5.0mm (1.8") |
| W | 5.5mm (0.22") |
| D1 | 1.8mm (0.07") |
| D | 2.8mm (0.11") |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
