Technical reference

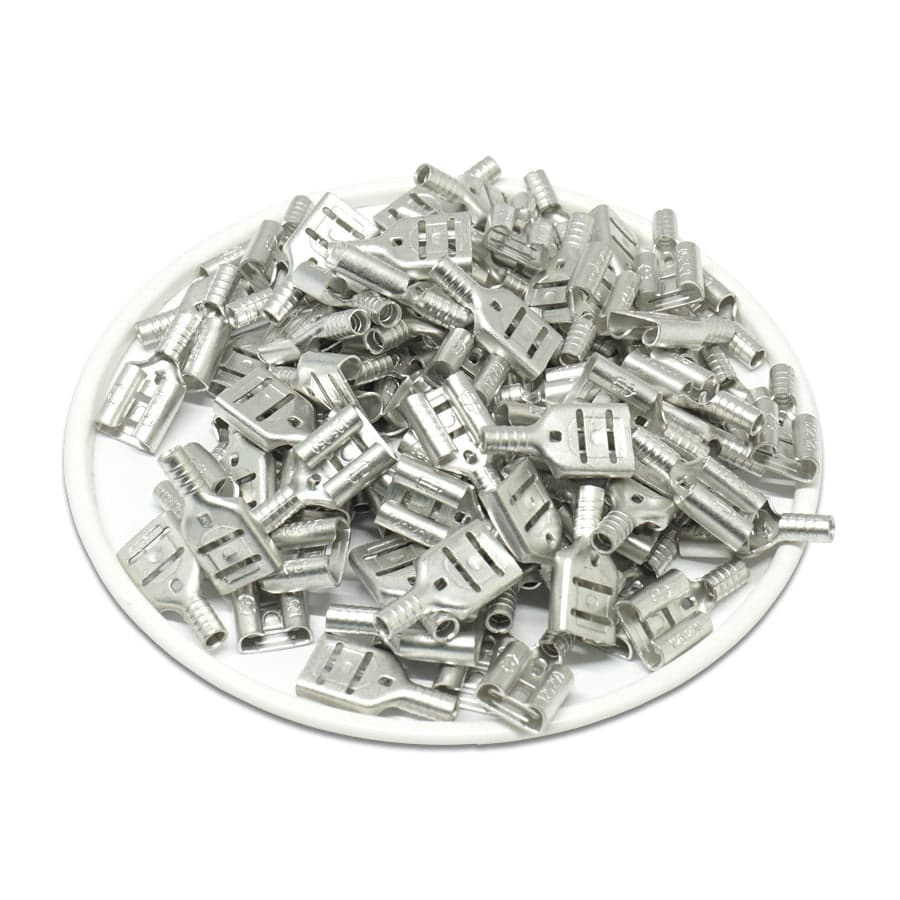

Procurement reference model: FDN1-250. Wire Size: 22-16 AWG; Nema Tab: 0.8 x 6.35mm (0.03 x 0.25"); Max Electrical Current: 10AMP. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Nema Tab | 0.8 x 6.35mm (0.03 x 0.25") |
| Max Electrical Current | 10AMP |
| Terminal Material | Brass |
| Surface Material | Tin-Plated |
| L | 15.2mm (0.60") |
| F | 7.3mm (0.29") |
| E | 5.2mm (0.20") |
| W | 6.6mm (0.26") |
| D1 | 2.0mm (0.08") |
| D | 2.9mm (0.11") |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
