Technical reference

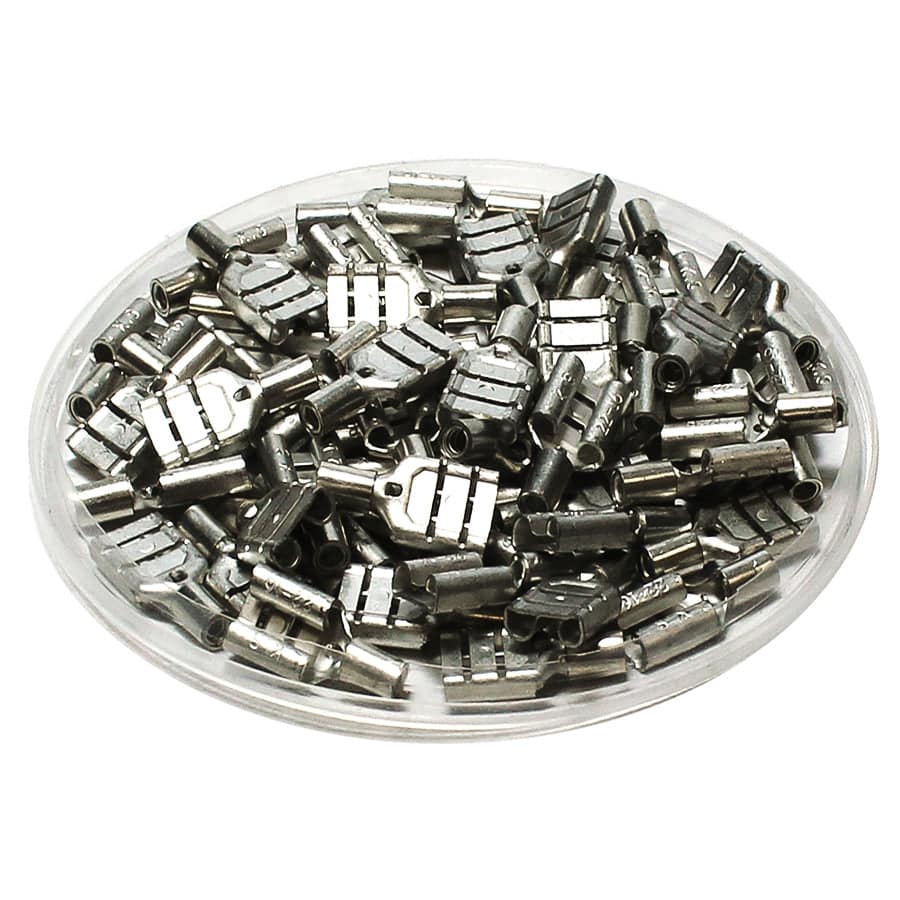

Procurement reference model: FDNDX1-250. Wire Size: 22-16 AWG; L: 15.7mm (.62"); F: 7.5mm (.30"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| L | 15.7mm (.62") |
| F | 7.5mm (.30") |
| E | 5.2mm (.21") |
| W | 6.6mm (.26") |
| D1 | 1.7mm (.07") |
| D | 3.4mm (.13") |
| Material | Tin-Plated Brass |
| Nema Tab | 0.8mm x 6.35mm (0.032" x 0.250") |
| Max Electrical Rating | 105°C (221°F) - 600 Volts |
| Max Electrical Current | 10A |
| UL Approved | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
