Technical reference

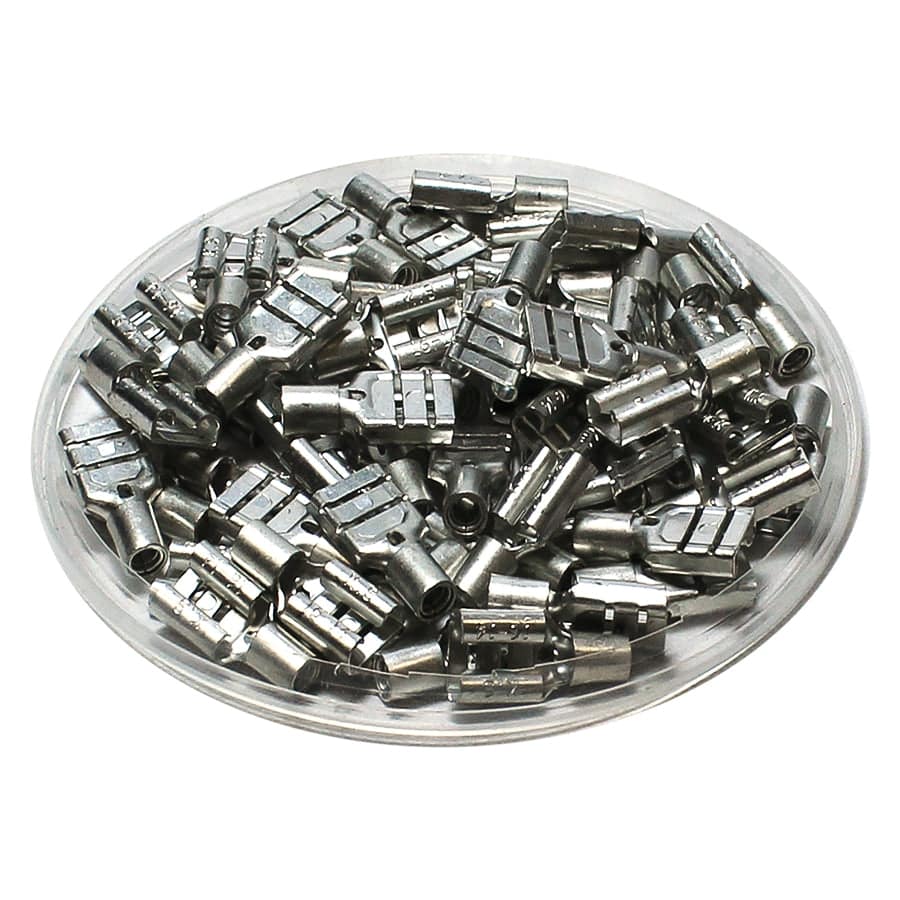

Procurement reference model: FDNDX2-187(8). Wire Size: 16-14 AWG; L: 14.2mm (.56"); F: 6.4mm (.25"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| L | 14.2mm (.56") |
| F | 6.4mm (.25") |
| E | 5.2mm (.21") |
| W | 5.0mm (.21") |
| D1 | 2.3mm (.09") |
| D | 4.1mm (.16") |
| Material | Tin-Plated Brass |
| Nema Tab | 0.8mm x 4.75mm (0.032" x 0.187") |
| Max Electrical Rating | 105°C (221°F) - 600 Volts |
| Max Electrical Current | 15A |
| UL Approved | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
