Technical reference

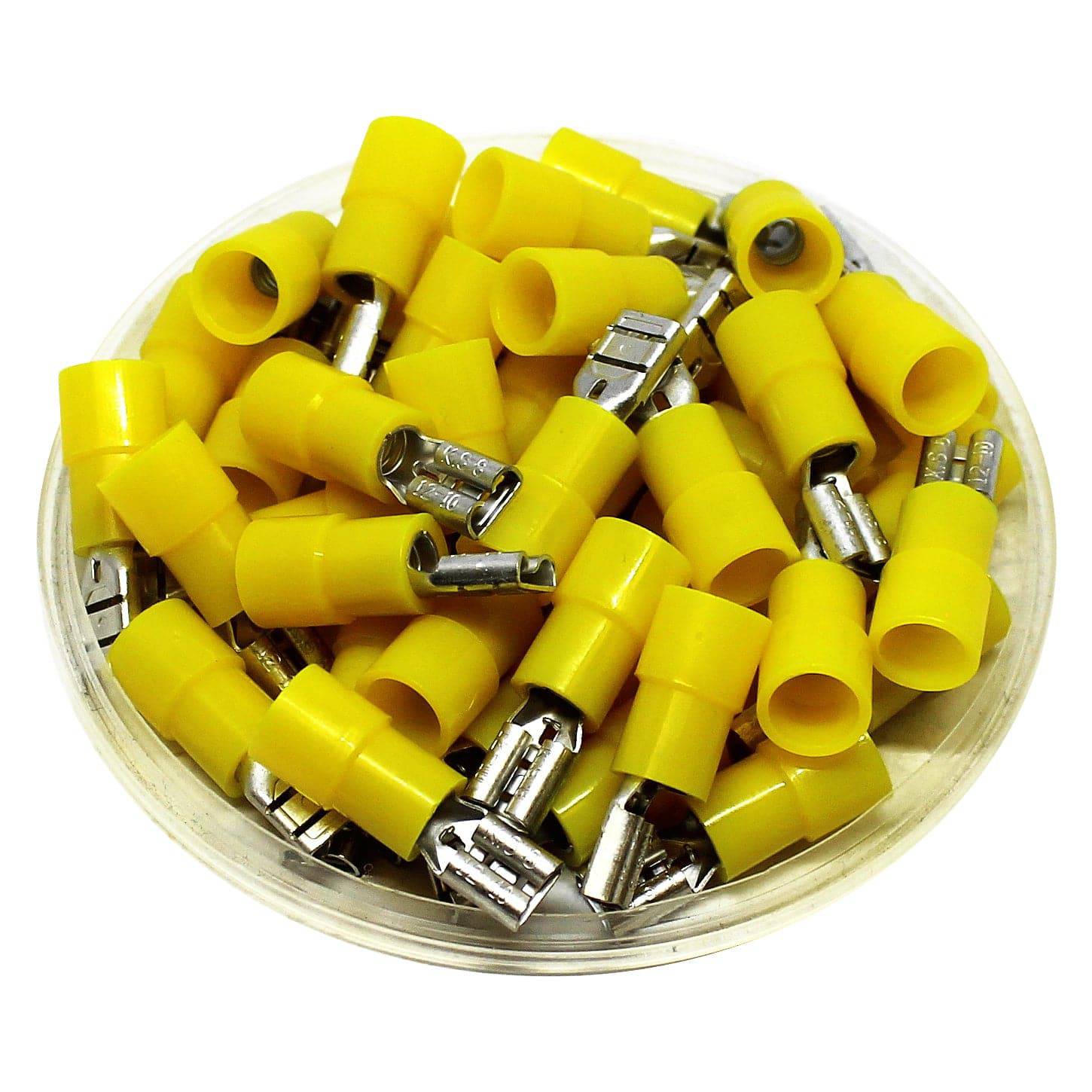

Procurement reference model: FDNY5-187(5). Wire Size: 12-10 AWG; Color: Yellow; T: 0.35mm (0.01"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 12-10 AWG |
| Color | Yellow |
| T | 0.35mm (0.01") |
| L | 22mm (0.87") |
| F | 6.5mm (0.26") |
| B | 13.0mm (0.51") |
| W | 5.0mm (0.20") |
| D | 6.3mm (0.25") |
| C | 3.4mm (0.13") |
| Terminal Insulation | Nylon |
| Terminal Material | Tin-Plated Brass |
| Nema Tab | 0.5mm x 4.75mm (0.020" x 0.187") |
| Temperature Rating | 105°C |
| Voltage Rating | 300 Volts |
| Max Electrical Current | 24AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
