Technical reference

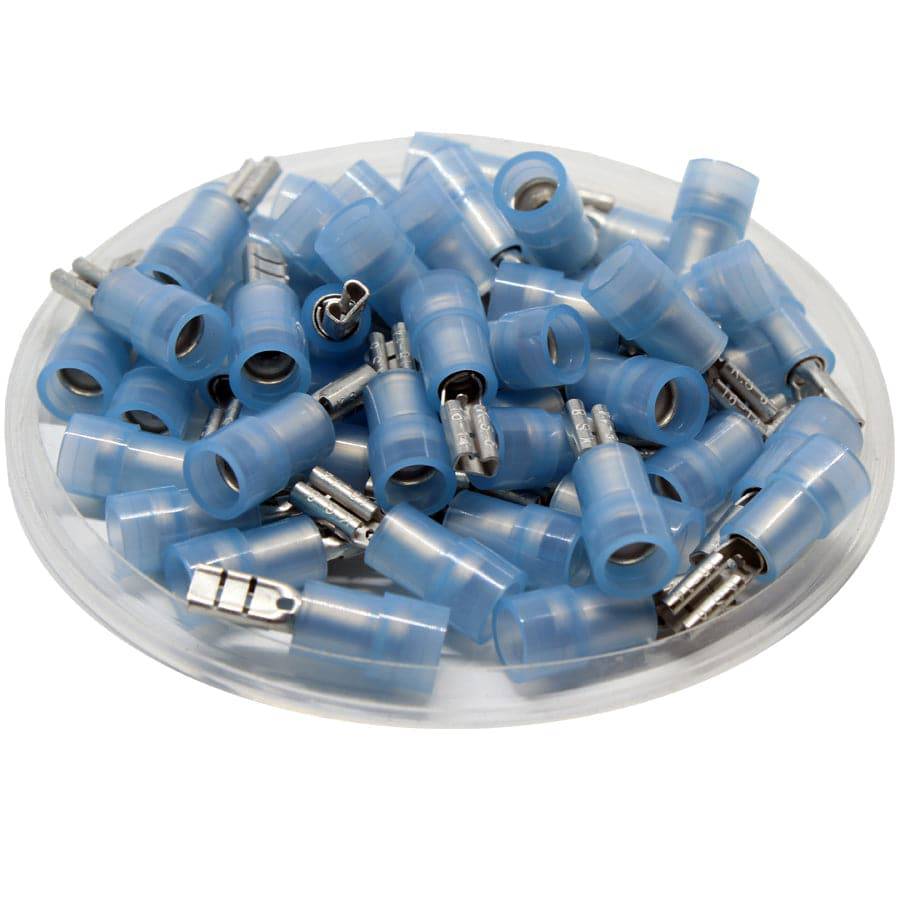

Procurement reference model: FDNYD2-250. Wire Range: 16-14 AWG; T: 0.4mm (0.02"); L: 21.5mm (0.85"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 16-14 AWG |
| T | 0.4mm (0.02") |
| L | 21.5mm (0.85") |
| F | 7.5mm (0.30") |
| B | 11.0mm (0.43") |
| W | 6.6mm (0.26") |
| D | 4.5mm (0.18") |
| C | 2.3mm (0.09") |
| Nema Tab | 0.03" X 0.31" (0.8mm X 8.0mm) |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Nylon |
| Voltage Rating | 600 Volts |
| AMP Rating | 15 AMP |
| Temp Rating | 75 o C |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
