Technical reference

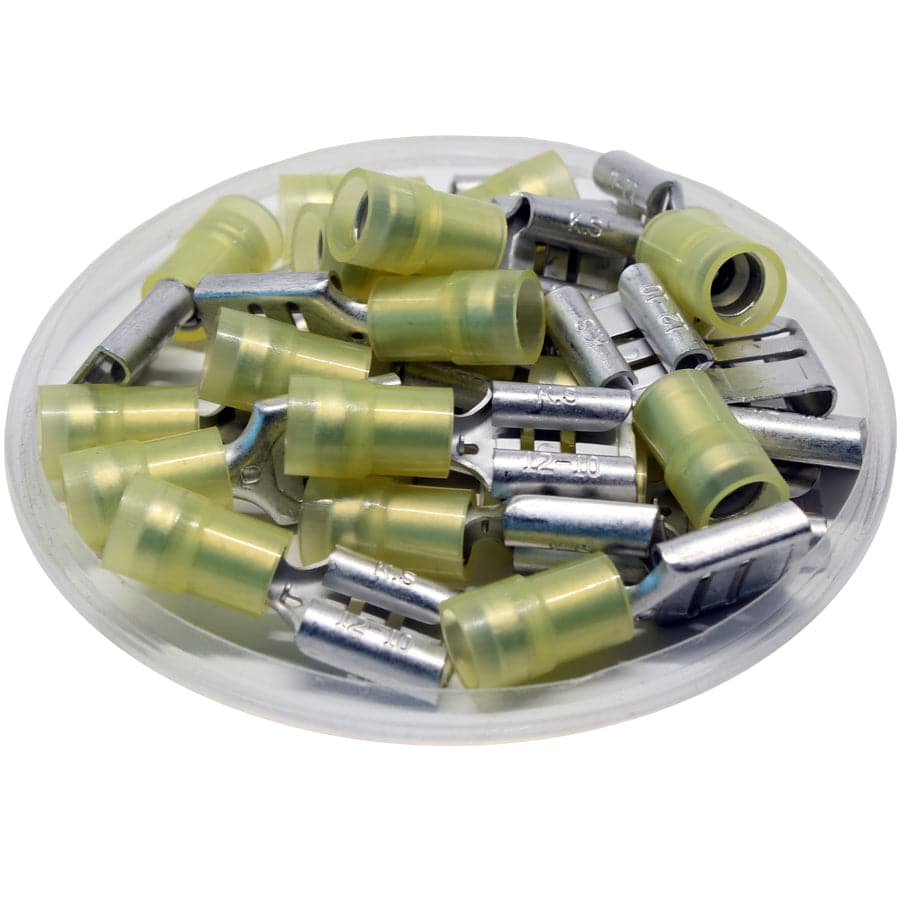

Procurement reference model: FDNYD5-375. Wire Size: 12-10 AWG; Color: Yellow; T: 0.5mm (0.02"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| Wire Size | 12-10 AWG |
| Color | Yellow |
| T | 0.5mm (0.02") |
| L | 28.5mm (1.12") |
| F | 12mm (0.47") |
| B | 13mm (0.51") |
| W | 10mm (0.39") |
| D | 6.2mm (0.24") |
| C | 3.4mm (0.13") |
| Material | Tin Plated Brass |
| Insulation Material | Nylon |
| Max Electrical Rating | 105°C - 600 Volts |
| Max Electrical Current | 24A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
