Technical reference

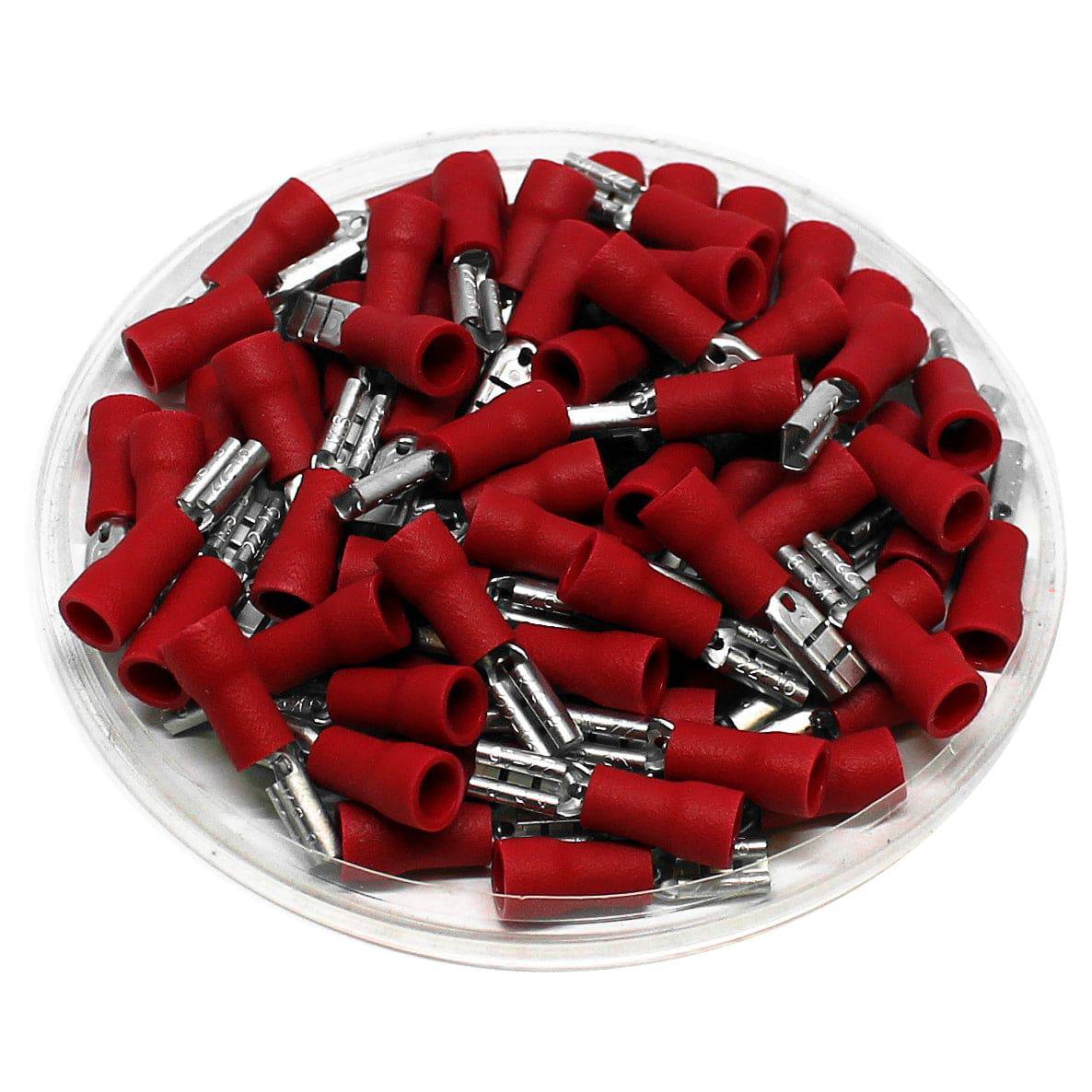

Procurement reference model: FDV1-110(5). Wire Size: 22-16 AWG; Terminal Material: Tin-Plated Brass; Insulation Material: Vinyl. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Terminal Material | Tin-Plated Brass |
| Insulation Material | Vinyl |
| Color | Red |
| Nema Tab | 0.5 x 2.8mm (0.02 x 0.11") |
| Temperature Rating | 75°C |
| Voltage Rating | 300 Volts |
| T | 0.30mm (0.01") |
| L | 16.6mm (0.65") |
| F | 6.5mm (0.25") |
| B | 10.0mm (0.39") |
| W | 3.2mm (0.13") |
| D | 4.0mm (0.16") |
| C | 1.7mm (0.07") |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
