Technical reference

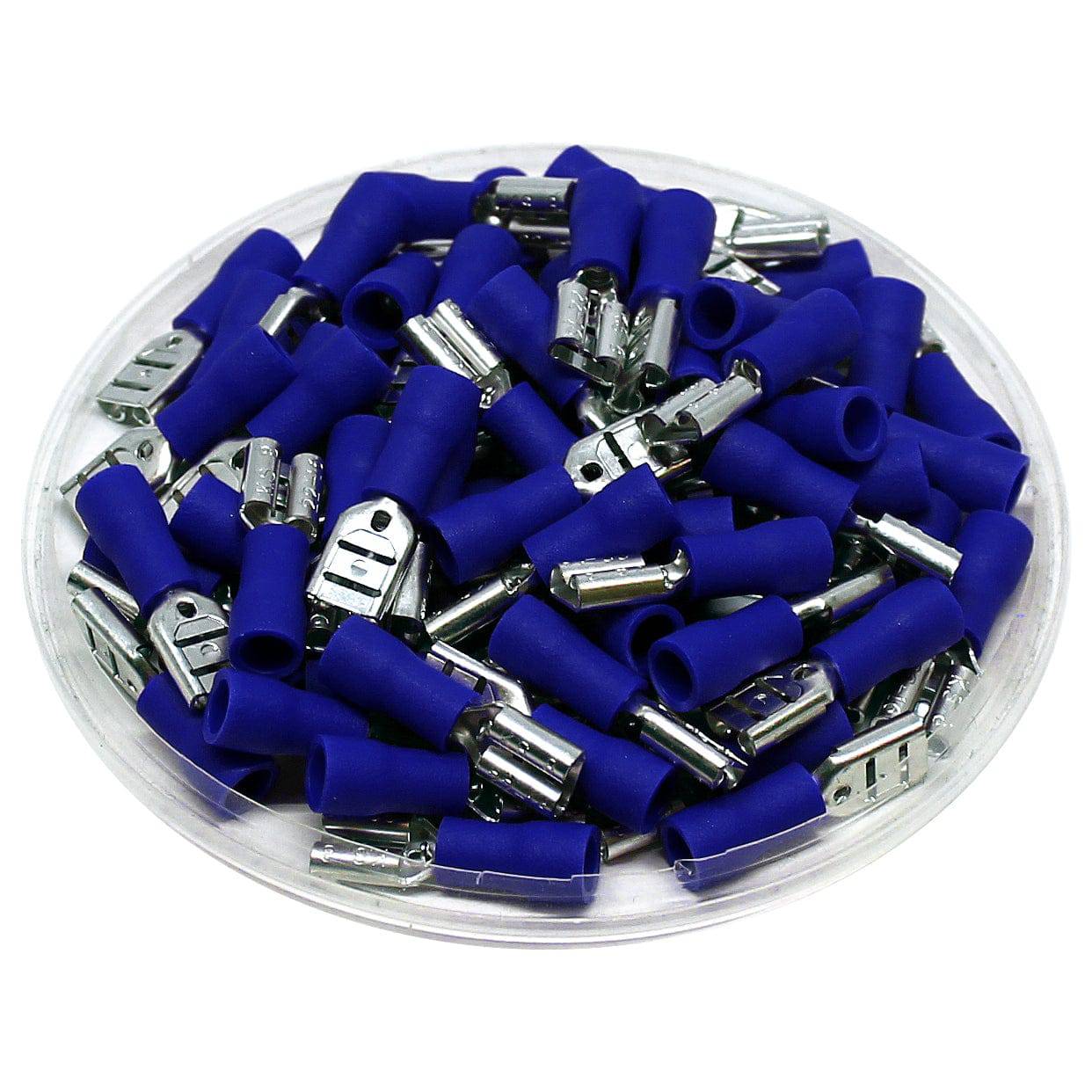

Procurement reference model: FDV2-187(5). Wire Size: 16-14 AWG; Terminal Material: Tin-Plated Brass; Insulation Material: Vinyl. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| Terminal Material | Tin-Plated Brass |
| Insulation Material | Vinyl |
| Color | Blue |
| Nema Tab | 0.5 x 4.75mm (0.02 x 0.18") |
| Temperature Rating | 75 o C |
| Voltage Rating | 300 Volts |
| T | 0.35mm (0.01") |
| L | 19.0mm (0.75") |
| F | 6.4mm (0.25") |
| B | 10.0mm (0.39") |
| W | 5.0mm (0.20") |
| D | 4.5mm (0.18") |
| C | 2.3mm (0.03") |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
