Technical reference

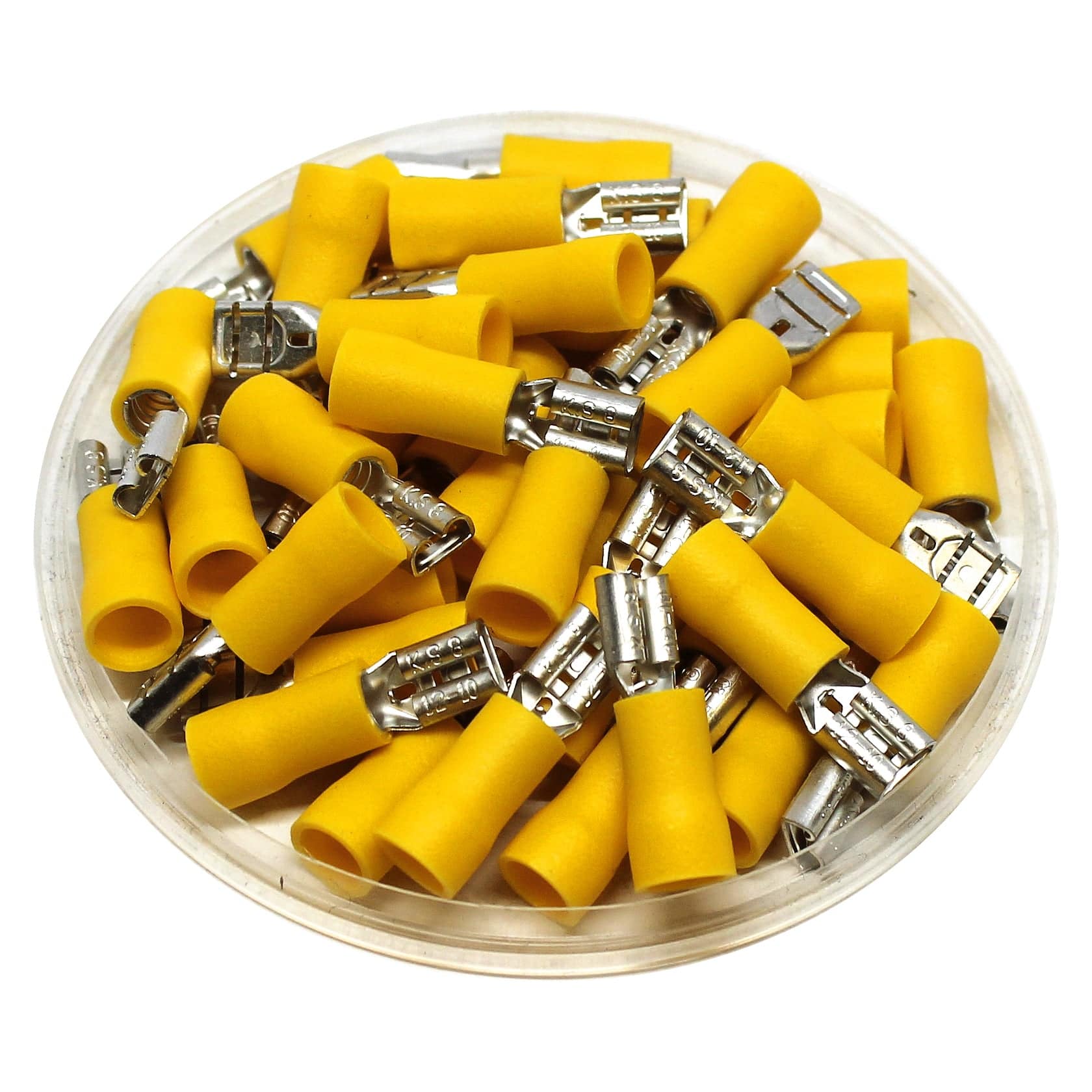

Procurement reference model: FDV5-250. Wire Size: 12-10 AWG; Terminal Material: Tin-Plated Brass; Insulation Material: Vinyl. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 12-10 AWG |
| Terminal Material | Tin-Plated Brass |
| Insulation Material | Vinyl |
| Color | Yellow |
| Nema Tab | 0.8 x 6.35mm (0.32 x 0.25") |
| Temperature Rating | 75 o C |
| Voltage Rating | 300 Volts |
| T | 0.40mm (0.02") |
| L | 23.5mm (0.93") |
| F | 7.5mm (0.30") |
| B | 13.0mm (0.51") |
| W | 6.6mm (0.26") |
| D | 5.5mm (0.22") |
| C | 3.4mm (0.13") |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
