Technical reference

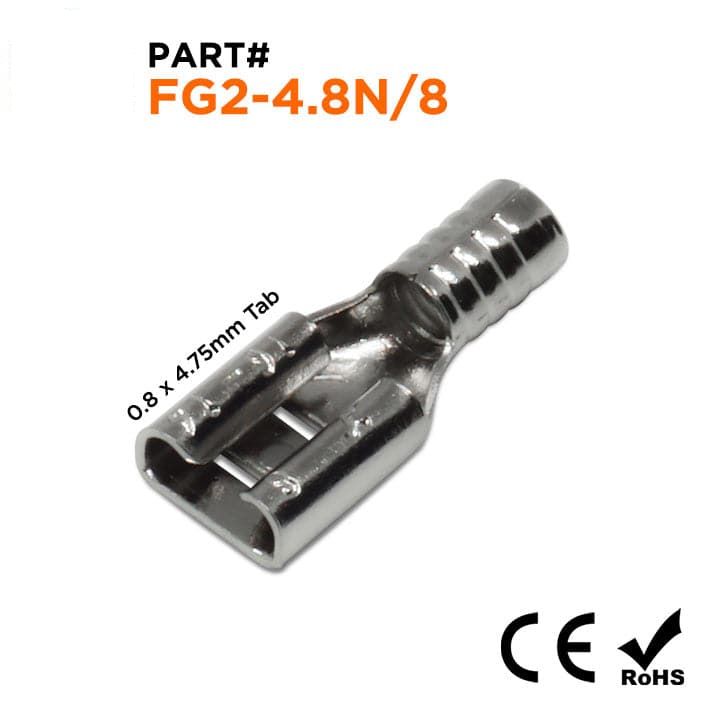

Procurement reference model: FG2-4.8N/8. Wire Size: 16-14 AWG; L: 14.0mm (0.551"); F: 6.6mm (0.260"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| L | 14.0mm (0.551") |
| F | 6.6mm (0.260") |
| E | 5.0mm (0.197") |
| W | 5.8mm (0.228") |
| D1 | 2.3mm (0.091") |
| D | 3.3mm (0.130") |
| Nema Tab | 0.8 x 4.75mm (0.03 x 0.187") |
| Max Operating Temp | 900°F (482°C) |
| Terminal Material | Nickel Plated Steel |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
