Technical reference

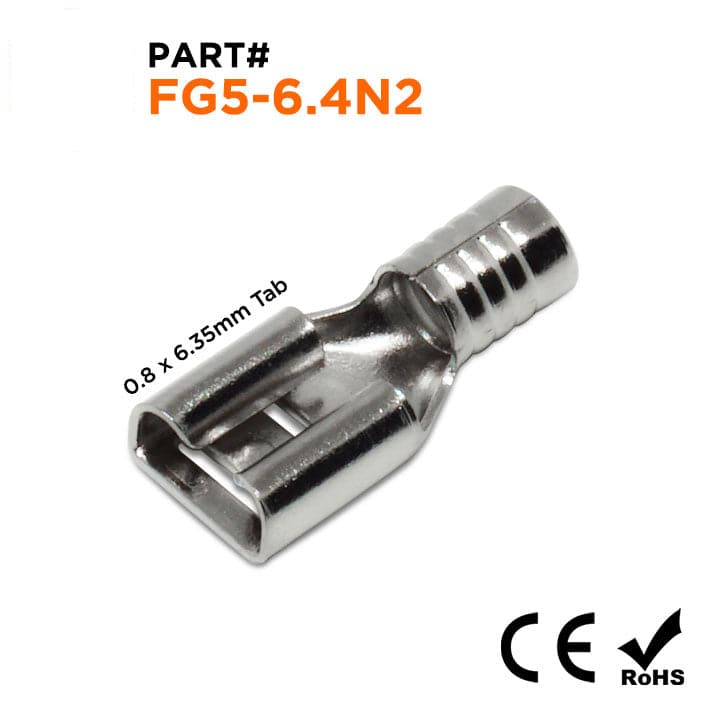

Procurement reference model: FG5-6.4N2. Wire Size: 12 to 10 AWG; L: 16.5mm (0.650"); F: 7.5mm (0.295"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 12 to 10 AWG |
| L | 16.5mm (0.650") |
| F | 7.5mm (0.295") |
| E | 6.0mm (0.236") |
| W | 7.4mm (0.291") |
| D1 | 3.5mm (0.138") |
| D | 4.5mm (0.177") |
| Nema Tab | 0.8 x 6.35mm (0.03 x 0.25") |
| Max Operating Temp | 900°F (482°C) |
| Terminal Material | Nickel Plated Steel |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
