Technical reference

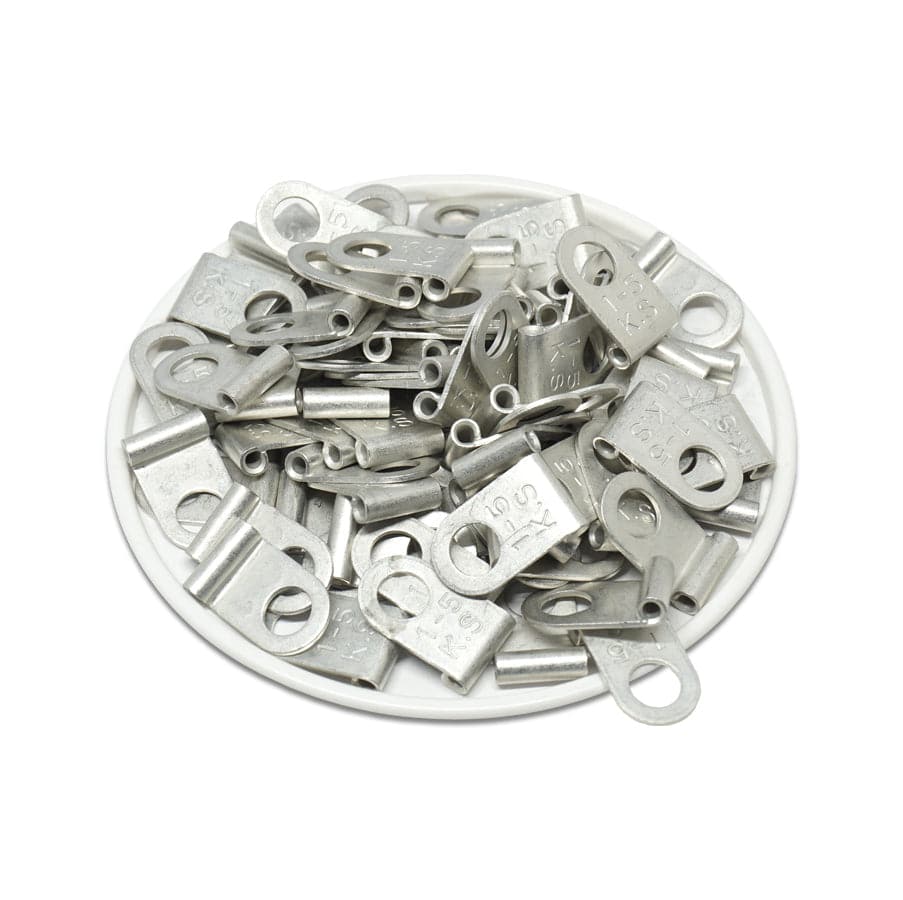

Procurement reference model: FGNB1-5. Wire Size: 22-16 AWG; Stud Size: #10; T: 0.75mm (0.13"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Stud Size | #10 |
| T | 0.75mm (0.13") |
| L | 16.3mm (0.64") |
| F | 8.0mm (0.31") |
| W | 9.6mm (0.37") |
| D | 3.4mm (0.13") |
| D1 | 1.7mm (0.06") |

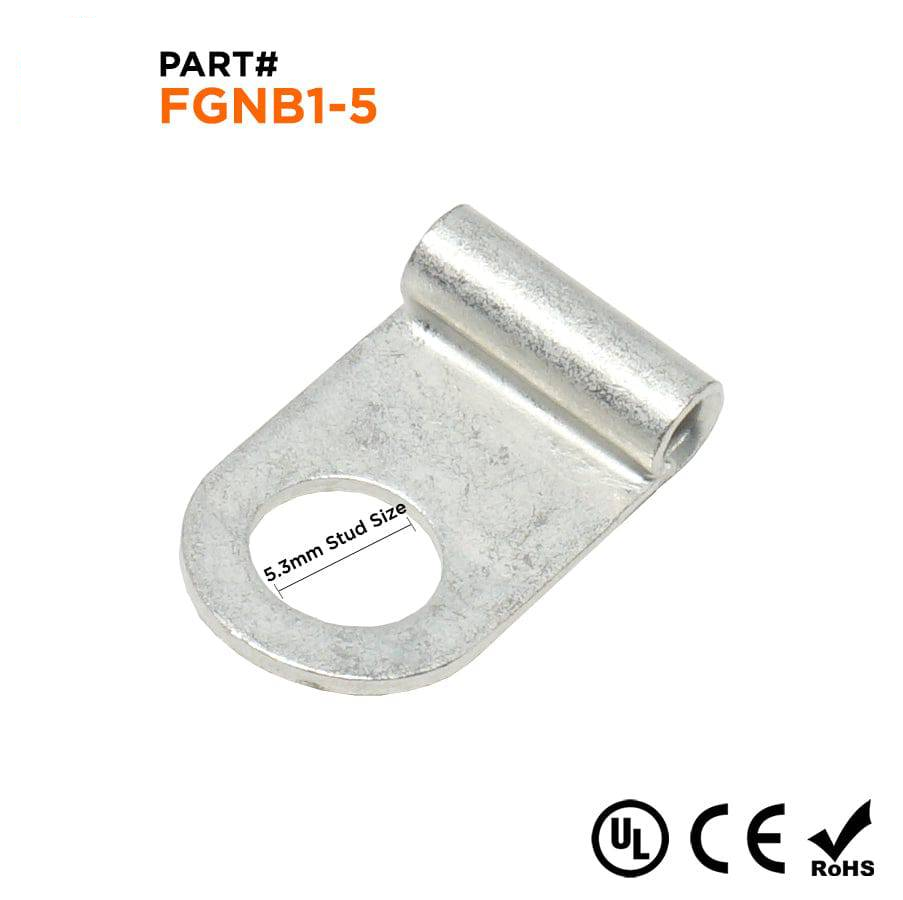

| D2 | 5.3mm (0.21") |
| Material | Tin-Plated Copper |
| Temperature Rating | 105 o C |
| Volt Rating | 600 Volts |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
